NSN 9390-01-029-7784
Part Details | NONMETALLIC CHANNEL
9390-01-029-7784 A structural shape fabricated from nonmetallic material(s) having two vertical flanges that extend in the same direction from each end of a horizontal base. The vertical flanges may have various type tips and additional flanges which extend on the same plane as the base. It may have a reinforcing agent(s) and backing Excludes SEAL, NONMETALLIC CHANNEL.
Alternate Parts: MILR6855, MIL-R-6855, 9390-01-029-7784, 01-029-7784, 9390010297784, 010297784
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | OCT 22, 1976 | 01-029-7784 | 30218 ( NONMETALLIC CHANNEL ) |
REFERENCE DRAWINGS & PICTURES
OPEN CHANNEL
LEFT W/INSIDE BULBOUS

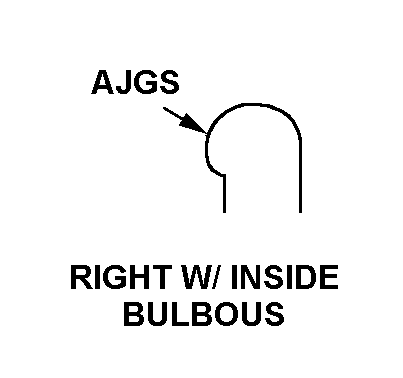

RIGHT W/ INSIDE BULBOUS
Cross Reference | NSN 9390-01-029-7784
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MIL-R-6855 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 9390-01-029-7784
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | OPEN CHANNEL |
| OVERALL HEIGHT | 0.485 INCHES NOMINAL |
| OVERALL WIDTH | 1.374 INCHES NOMINAL |
| RIGHT SIDE FLANGE HEIGHT | 0.360 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.187 INCHES NOMINAL |
| RIGHT SIDE FLANGE THICKNESS | 0.187 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| LEFT-SIDE FLANGE TIP STYLE | LEFT W/INSIDE BULBOUS |
| RIGHT-SIDE FLANGE TIP STYLE | RIGHT W/ INSIDE BULBOUS |
| MATERIAL | RUBBER SYNTHETIC |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-6855,CLASS 1,GRADE 70 MIL SPEC SINGLE MATERIAL RESPONSE |
| NONMETALLIC HARDNESS RATING | 65.0 MINIMUM SHORE DUROMETER A AND 75.0 MAXIMUM SHORE DUROMETER A |
| MINIMUM TENSILE STRENGTH | 1400 POUNDS PER SQUARE INCH |
| ENVIRONMENTAL PROTECTION | FUEL RESISTANT AND OIL RESISTANT AND LOW TEMPERATURE |
| SPECIAL FEATURES | COLOR,BLACK |
| NONDEFINITIVE SPEC/STD DATA | 1 CLASS AND EXTRUDED SHAPE FORM AND 70 GRADE |
