NSN 6680-01-043-4236
Part Details | LIQUID SIGHT INDICATOR
6680-01-043-4236 An item so designed to have a portion or all of its body transparent to permit the visual examination of the amount of liquid in a pressure vessel, boiler, evaporator, still, processing tank, reservoir, pipe tubing line, and the like, and/or to determine the flow to a lubricated part. It may also be provided with an element that changes colors to indicate changes in moisture content. The item may have a means for refilling. Excludes INDICATOR, LIQUID QUANTITY and INDICATOR, RATE OF FLOW.
Alternate Parts: 04101, 367644, 6680-01-043-4236, 01-043-4236, 6680010434236, 010434236
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JUN 24, 1977 | 01-043-4236 | 03175 ( INDICATOR, SIGHT, LIQUID ) |
REFERENCE DRAWINGS & PICTURES

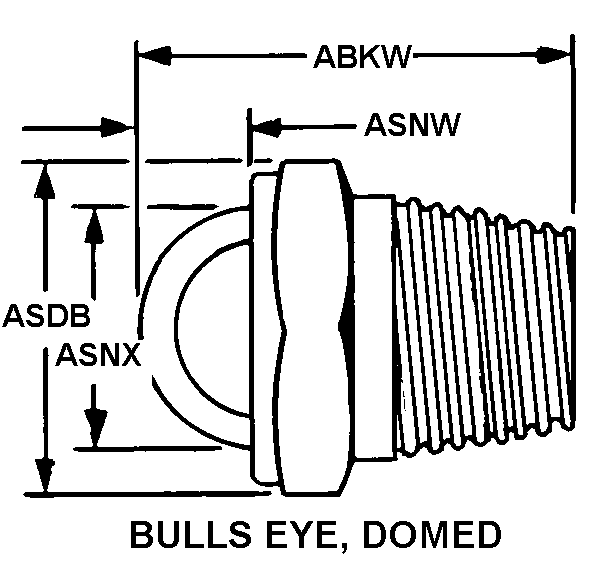

BULLS EYE, DOMED
Cross Reference | NSN 6680-01-043-4236
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 04101 | 24981 | APACHE CORPGITS BROS MFG CO |
| 367644 | 31361 | WOODWARD, INC.DBA INDUSTRIAL PRODUCTS GROUP |
Technical Data | NSN 6680-01-043-4236
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| SURFACE TREATMENT | NICKEL |
| STYLE DESIGNATOR | BULLS EYE, DOMED |
| OVERALL HEIGHT | 0.969 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 1.500 INCHES NOMINAL |
| SIGHT HEIGHT | 0.657 INCHES NOMINAL |
| SIGHT DIAMETER | 1.250 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | CJ ANY ACCEPTABLE |
| FURNISHED DATA | LIQUID LEVEL |
| DATA FURNISHING METHOD | CLEAR WINDOW |
| FEATURES PROVIDED | REFLECTOR |
| SPECIAL FEATURES | PRESS FIT |
