NSN 6680-00-880-2458
Part Details | MEDICAL GAS ADMINISTRATION APPARATUS PRESSURE REGULATOR
6680-00-880-2458 A precision device designed to accept compressed medical gas from a cylinder and to deliver it to the administration apparatus at a safe pressure which is automatically maintained. It is usually furnished with a gage to indicate pressure in the cylinder and it may have a flowmeter to measure the volume of gas delivered.
Alternate Parts: 5417N4A, 680A25, 5417N4A, 6680-00-880-2458, 00-880-2458, 6680008802458, 008802458
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1960 | 00-880-2458 | 19229 ( REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS ) |
REFERENCE DRAWINGS & PICTURES

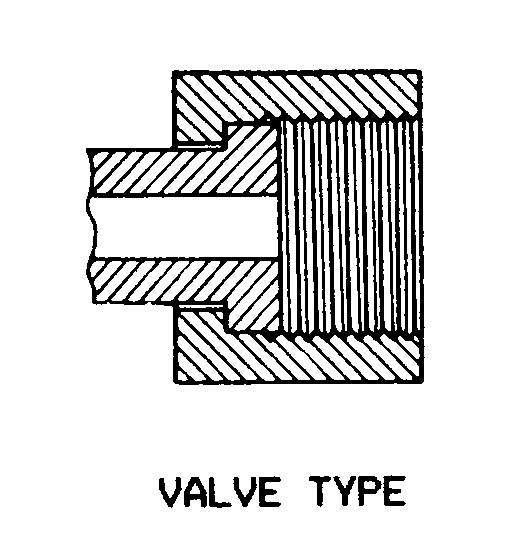

VALVE TYPE

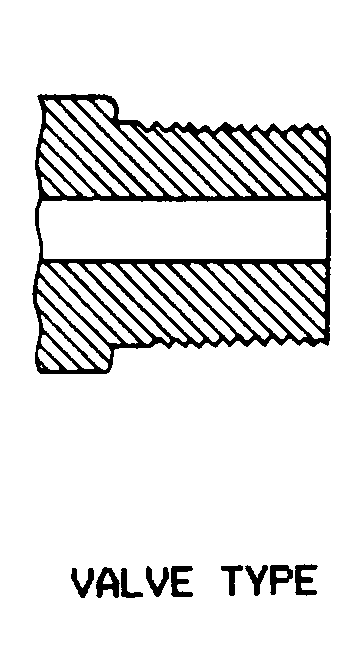

VALVE TYPE
VALVE TYPE
VALVE TYPE
VALVE TYPE
VALVE TYPE
Cross Reference | NSN 6680-00-880-2458
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5417N4A | 28968 | CIRCOR INSTRUMENTATION TECHNOLOGIES,INC. |
| 680A25 | 28968 | CIRCOR INSTRUMENTATION TECHNOLOGIES,INC. |
| 5417N4A | 13669 | TESCOM CORPORATIONDBA EMERSON PROCESS MANAGEMENT |
Technical Data | NSN 6680-00-880-2458
| Characteristic | Specifications |
|---|---|
| SPECIFIC GAS FOR WHICH DESIGNED | NITROGEN |
| STAGE TYPE | SINGLE |
| BODY MATERIAL | ALUMINUM ALLOY |
| REGULATION TYPE | AUTOMATIC |
| CYLINDER PRESSURE GAGE | INCLUDED |
| CYLINDER PRESSURE GAGE RANGE | +0.0 TO +3000.0 POUNDS PER SQUARE INCH |
| MAXIMUM DELIVERY PRESSURE | 140.0 POUNDS PER SQUARE INCH |
| INLET CONNECTION END STYLE | VALVE TYPE |
| INLET CONNECTION NOMINAL PIPE SIZE | 0.960 INCHES |
| INLET ADAPTER | NOT INCLUDED |
| OUTLET CONNECTION END STYLE | VALVE TYPE |
| OUTLET CONNECTION NOMINAL PIPE SIZE | 0.250 INCHES |
| AUTOMATIC RELIEF VALVE | INCLUDED |
| FLOWMETER | INCLUDED |
