NSN 6680-00-826-1809
Part Details | ROTATING COUNTER
6680-00-826-1809 An instrument actuated by means of a rotating shaft and designed to register and total numerically in units proportional to one complete revolution of its shaft. It may have a fixed type mounting or designed to be hand held. See also COUNTER, ELECTRICAL.
Alternate Parts: 3771006P1, 377-1006P1, 3771006P1, 377-1006P1, 3771006P1, 377-1006P1, 3771006P1, 377-1006P1, 6680-00-826-1809, 00-826-1809, 6680008261809, 008261809
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1962 | 00-826-1809 | 30762 ( COUNTER, ROTATING ) |
REFERENCE DRAWINGS & PICTURES

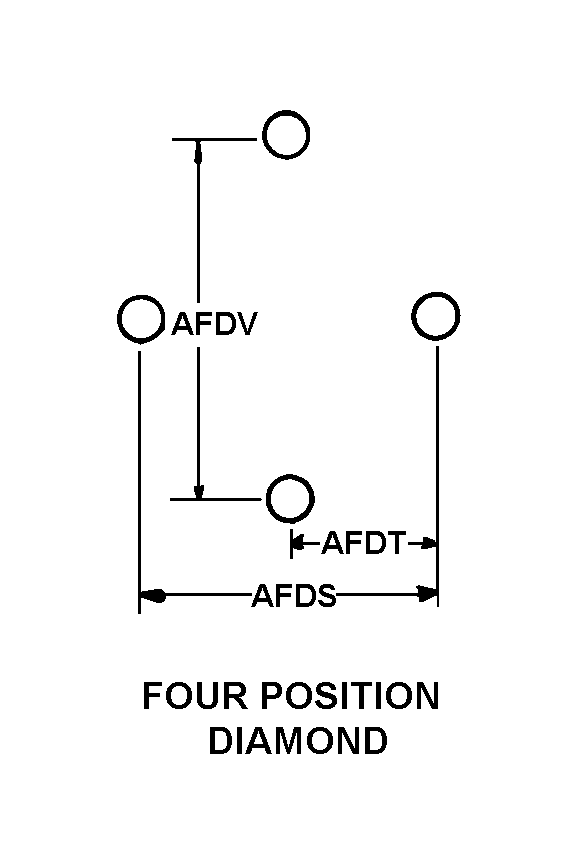

FOUR POSITION DIAMOND
UNENCLOSED SQUARE OR RECTANGULAR
Cross Reference | NSN 6680-00-826-1809
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 377-1006P1 | 99687 | RAYTHEON CO EQUIPMENT DEVELOPMENTLAB |
| 377-1006P1 | 49956 | RAYTHEON COMPANYDBA RAYTHEON |
| 377-1006P1 | 3B150 | RAYTHEON COMPANYDBA RAYTHEON |
| 377-1006P1 | 54X10 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 6680-00-826-1809
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | UNENCLOSED SQUARE OR RECTANGULAR |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| OVERALL HEIGHT | 1.531 INCHES NOMINAL |
| OVERALL WIDTH | 1.125 INCHES NOMINAL |
| SHAFT DIAMETER | 0.124 INCHES NOMINAL |
| SHAFT LENGTH | 0.312 INCHES NOMINAL |
| REGISTER QUANTITY | 1 |
| NUMERAL DISPLAY METHOD | DRUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| MOUNTING ARRANGEMENT STYLE | FOUR POSITION DIAMOND |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 0.812 INCHES NOMINAL |
| SHORTEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 0.406 INCHES NOMINAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 0.562 INCHES NOMINAL |
| SPECIAL FEATURES | ALTERNATE ACTUATING DEVICE LOCATION,RIGHT SIDE |
