NSN 6680-00-585-5208
Part Details | LIQUID SIGHT INDICATOR
6680-00-585-5208 An item so designed to have a portion or all of its body transparent to permit the visual examination of the amount of liquid in a pressure vessel, boiler, evaporator, still, processing tank, reservoir, pipe tubing line, and the like, and/or to determine the flow to a lubricated part. It may also be provided with an element that changes colors to indicate changes in moisture content. The item may have a means for refilling. Excludes INDICATOR, LIQUID QUANTITY and INDICATOR, RATE OF FLOW.
Alternate Parts: L2915831, L291583-1, 6680-00-585-5208, 00-585-5208, 6680005855208, 005855208
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1963 | 00-585-5208 | 03175 ( INDICATOR, SIGHT, LIQUID ) |
REFERENCE DRAWINGS & PICTURES

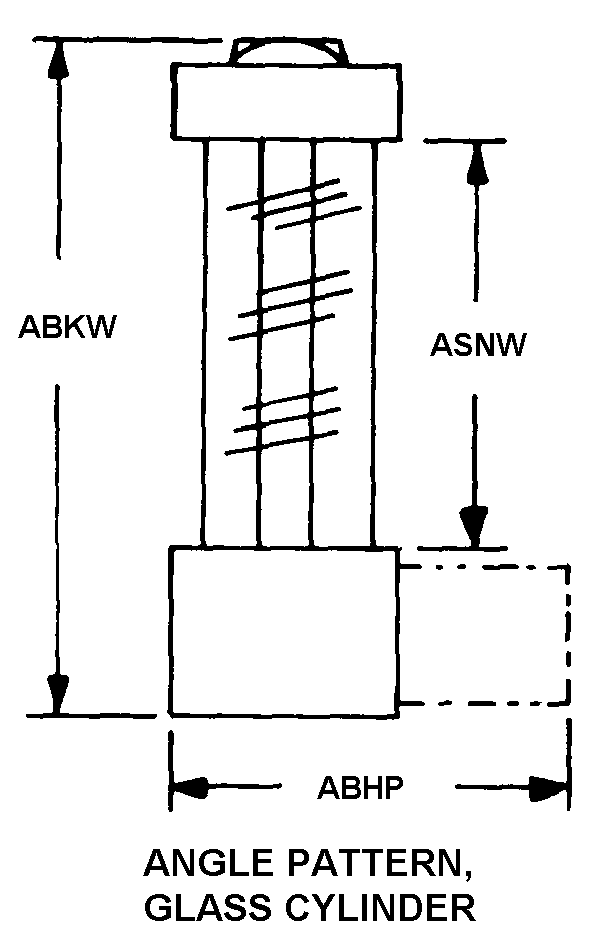

ANGLE PATTERN, GLASS CYLINDER
Cross Reference | NSN 6680-00-585-5208
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| L291583-1 | 06845 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 6680-00-585-5208
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| STYLE DESIGNATOR | ANGLE PATTERN, GLASS CYLINDER |
| OVERALL LENGTH | 3.000 INCHES NOMINAL |
| OVERALL HEIGHT | 9.438 INCHES NOMINAL |
| SIGHT HEIGHT | 8.000 INCHES NOMINAL |
