NSN 6680-00-443-0619
Part Details | LIQUID SIGHT INDICATOR
6680-00-443-0619 An item so designed to have a portion or all of its body transparent to permit the visual examination of the amount of liquid in a pressure vessel, boiler, evaporator, still, processing tank, reservoir, pipe tubing line, and the like, and/or to determine the flow to a lubricated part. It may also be provided with an element that changes colors to indicate changes in moisture content. The item may have a means for refilling. Excludes INDICATOR, LIQUID QUANTITY and INDICATOR, RATE OF FLOW.
Alternate Parts: 6680004430619, 11616761, 6680-00-443-0619, 00-443-0619, 6680004430619, 004430619
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | APR 03, 1969 | 00-443-0619 | 03175 ( INDICATOR, SIGHT, LIQUID ) |
REFERENCE DRAWINGS & PICTURES

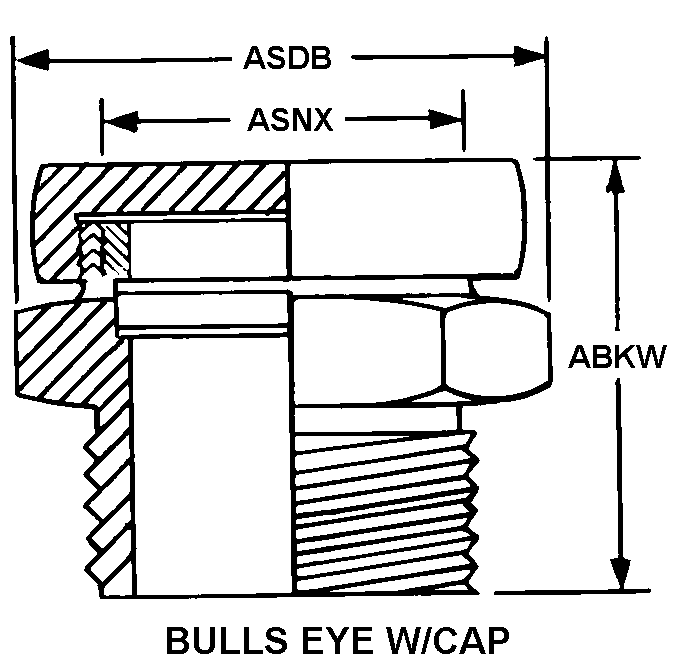

BULLS EYE W/CAP
Cross Reference | NSN 6680-00-443-0619
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6680004430619 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 11616761 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 6680-00-443-0619
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| STYLE DESIGNATOR | BULLS EYE W/CAP |
| OVERALL HEIGHT | 0.812 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 1.500 INCHES NOMINAL |
| SIGHT DIAMETER | 0.750 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | ANY ACCEPTABLE |
| FURNISHED DATA | LIQUID LEVEL |
| DATA FURNISHING METHOD | CLEAR WINDOW |
| SPECIFICATION/STANDARD DATA | 19207-11616761 MANUFACTURERS SOURCE CONTROL |
