NSN 6640-01-499-7585
Part Details | ANAEROBIC CULTURE APPARATUS JAR
6640-01-499-7585 A vessel used with an anaerobic lid, catalyst, generator, and indicator for obtaining an anaerobic condition.
Alternate Parts: 021477, 02-1477, SBFA8, SBFA-8, 685025, 6640-01-499-7585, 01-499-7585, 6640014997585, 014997585
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | AUG 02, 2002 | 01-499-7585 | 16963 ( JAR, ANAEROBIC CULTURE APPARATUS ) |
REFERENCE DRAWINGS & PICTURES

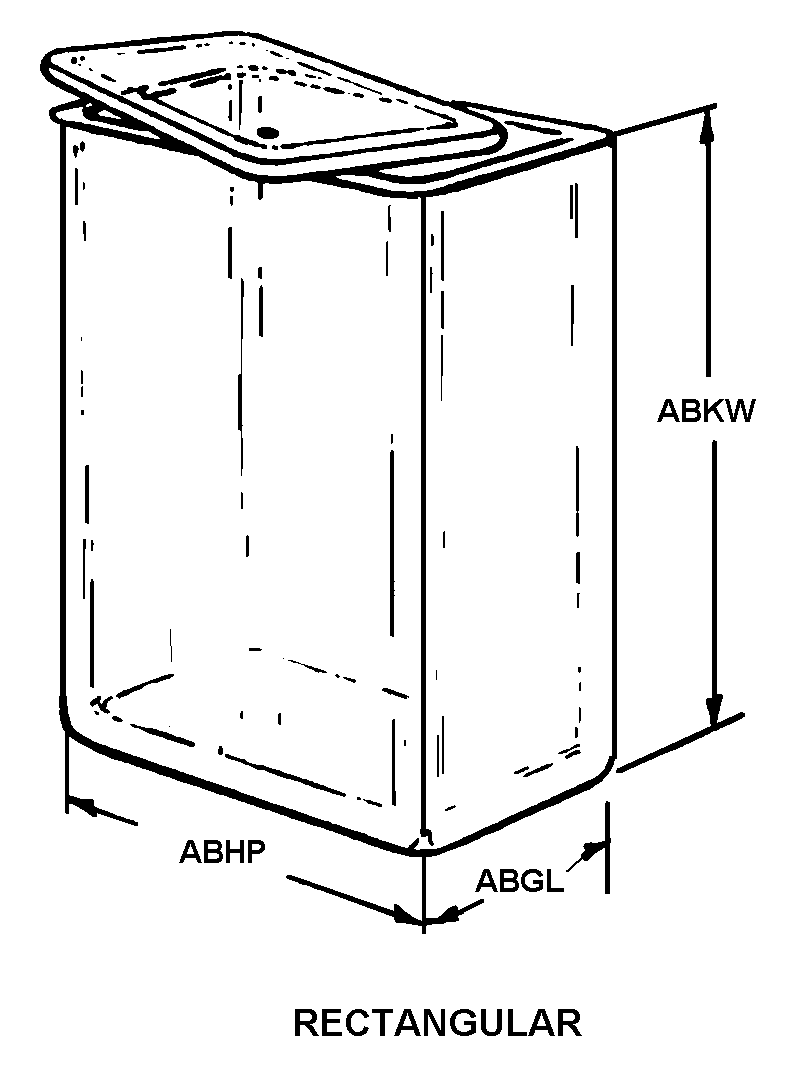

RECTANGULAR
Cross Reference | NSN 6640-01-499-7585
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 02-1477 | 89875 | DEFENSE LOGISTICS AGENCYDIRECTORATE OF MEDICAL MATERIEL |
| SBFA-8 | 0GVV9 | GERMFREE LABORATORIES INCORPORATEDDBA GERMFREE |
| 685025 | 7V410 | REMEL INC. |
Technical Data | NSN 6640-01-499-7585
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC |
| STYLE DESIGNATOR | RECTANGULAR |
| WIDTH | 6.500 INCHES NOMINAL |
| OVERALL LENGTH | 8.750 INCHES NOMINAL |
| OVERALL HEIGHT | 4.000 INCHES NOMINAL |
| PRIMARY CONTAINER TYPE | ANY ACCEPTABLE |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| SPECIAL FEATURES | 2.5 LITER CAPACITY; EASY CLOSE LID; HOLDS 12 STANDARD PLATES |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | JAR ANAEROBIC CULTURE APPARATUS REMEL 6.5X8.75X4IN 2.5LITER CAP |
