NSN 6640-01-261-8108
Part Details | LABORATORY CONDENSER
6640-01-261-8108 A device, usually cylindrical in shape, composed of an internal tube surrounded by an outer jacket. The tube may be straight, coiled, repetitiously bulbous or indented and must have an inlet and outlet for the condensing vapors. The jacket must have an inlet and outlet, in the form of male side tubulations, for the regular flow of the coolant. Used for condensing vapors to a liquid state in refluxing, extracting and distilling operations. Excludes DISTILLING COLUMN, FRACTIONATING.
Alternate Parts: 206222301, 206222-301, 6640-01-261-8108, 01-261-8108, 6640012618108, 012618108
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | AUG 19, 1987 | 01-261-8108 | 19430 ( CONDENSER, LABORATORY ) |
REFERENCE DRAWINGS & PICTURES

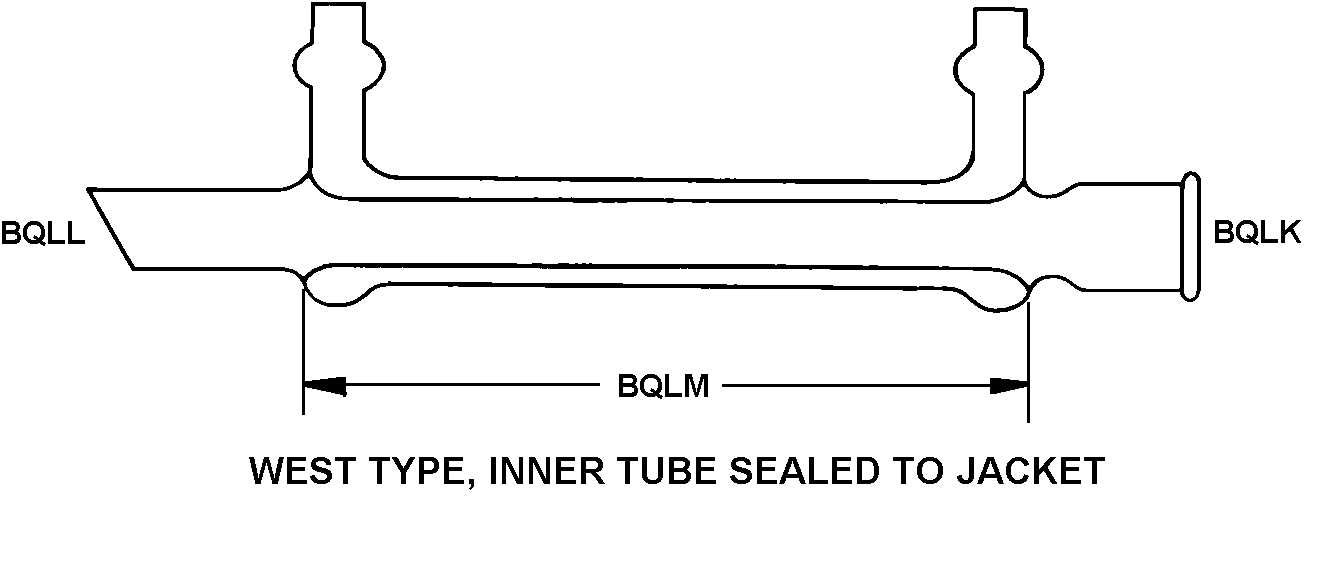

WEST TYPE INNER TUBE SEALED TO JACKET
Cross Reference | NSN 6640-01-261-8108
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 206222-301 | 88932 | NORTHROP GRUMMAN CORPPRECISION PRODUCTS PLANT |
Technical Data | NSN 6640-01-261-8108
| Characteristic | Specifications |
|---|---|
| CONDENSER STYLE DESIGNATOR | WEST TYPE INNER TUBE SEALED TO JACKET |
| DRIP TIP | INCLUDED |
