NSN 6240-00-797-2800
Part Details | INCANDESCENT LAMP
6240-00-797-2800 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: 49L(51), 49L, 6240-00-797-2800, 00-797-2800, 6240007972800, 007972800
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1960 | 00-797-2800 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

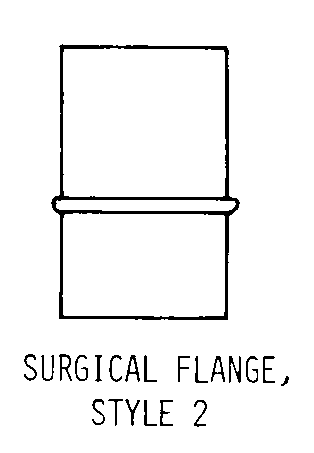

SURGICAL FLANGE, STYLE 2
T (TUBULAR)
Cross Reference | NSN 6240-00-797-2800
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 49L(51) | 07834 | BOEHM SURGICAL INSTRUMENT CORP |
| 49L | 02033 | GYRUS ACMI L.P.DBA CIRCON-ACMI DIV |
Technical Data | NSN 6240-00-797-2800
| Characteristic | Specifications |
|---|---|
| BASE STYLE | SURGICAL FLANGE, STYLE 2 |
| BULB STYLE | T (TUBULAR) |
| BULB DESIGNATOR | T-3/4 |
| OVERALL LENGTH | 0.375 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | WHITE |
| FILAMENT DESIGNATION | C-6 |
| CURRENT RATING FOR WHICH DESIGNED | 0.275 AMPERES NOMINAL |
| RATED AVERAGE LIFE | INDEFINITE LONG |
| BURNING POSITION | |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| SPECIAL FEATURES | TUNGSTEN FILAMENT MATERIAL |
