NSN 6240-00-752-1938
Part Details | FLASHTUBE LAMP
6240-00-752-1938 A lamp that produces repeated light flashes of exceedingly high intensity for short durations. May include incandescent lamp within itself.
Alternate Parts: R4336, FT36H, GN73, R4336, 6240-00-752-1938, 00-752-1938, 6240007521938, 007521938
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1962 | 00-752-1938 | 03314 ( LAMP, FLASHTUBE ) |
REFERENCE DRAWINGS & PICTURES
LINEAR

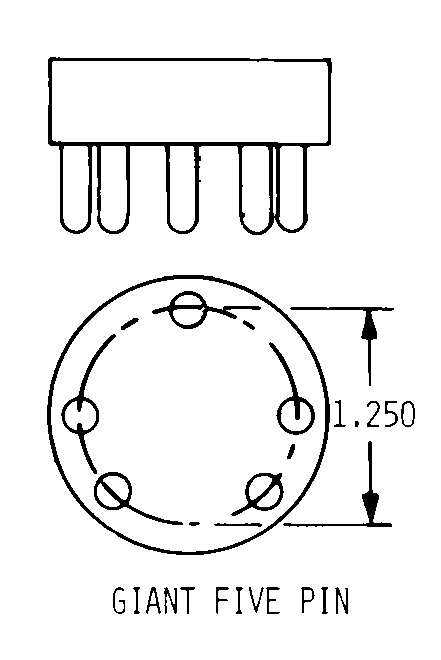

GIANT FIVE PIN
Cross Reference | NSN 6240-00-752-1938
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| R4336 | 70558 | AMGLO KEMLITE LABORATORIES, INC.DBA AMGLO |
| FT36H | 08805 | GENERAL ELECTRIC COMPANYDBA GE |
| GN73 | 60426 | GENESIS LAMP CORP. |
| R4336 | 58854 | GTE PRODUCTS CORPLIGHTING PRODUCTS GROUP |
Technical Data | NSN 6240-00-752-1938
| Characteristic | Specifications |
|---|---|
| BASE STYLE | GIANT FIVE PIN |
| FLASHTUBE STYLE | 1 LINEAR |
| FLASHTUBE OVERALL LENGTH | 6.000 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | BLUE-WHITE |
| FILLING GAS TYPE | XENON |
| VOLTAGE RATING | 2000.000 VOLTS NOMINAL |
| INPUT RATING IN WATT-SECONDS | 60.0 |
| MAXIMUM FLASHING RATE PER SECOND | 2 |
| LIGHT CENTER LENGTH | 4.000 INCHES NOMINAL |
| SPECIAL FEATURES | LIFE 20000000.0 FLASHES; 2000.0 LUMENS LIGHT OUTPUT |
