NSN 6240-00-635-9800
Part Details | INCANDESCENT LAMP
6240-00-635-9800 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: 325, 85432596, 854-325-96, 193145, 870159, 87-0159, 31149986, 31149-986, 31149900PC986, 31149-900PC986, CM325, 6240006359800, 6240-00-635-9800, 325, 13320, WE04.03.1901, 325, LTX325, 303051, MS516083, MS51608-3, 1700040003, 170-004-0003, 2409965502PC986, 2409-965502PC986, 325, PL325, CM325, 325, 870159, 87-0159, 6240-00-635-9800, 00-635-9800, 6240006359800, 006359800
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1963 | 00-635-9800 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

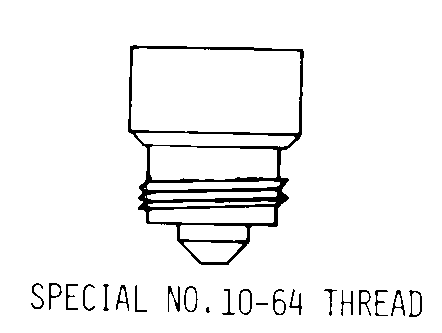

SPECIAL NO. 10-64 THREAD
T (TUBULAR)
Cross Reference | NSN 6240-00-635-9800
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 325 | 80204 | AMERICAN NATIONAL STANDARDSINSTITUTE, INCORPORATED |
| 854-325-96 | 25965 | AMETEK PROGRAMMABLE POWER, INC.DBA AMETEK PROGRAMMABLE POWER |
| 193145 | 21450 | ARMY WEAPONS COMMANDATTN AMSWE-REE-S |
| 87-0159 | 19397 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| 31149-986 | 06175 | BAUSCH & LOMB INC |
| 31149-900PC986 | 06175 | BAUSCH & LOMB INC |
| CM325 | 71744 | CHICAGO MINIATURE LIGHTING LLCDBA CHICAGO MINIATURE OPTOELECTRON |
| 6240-00-635-9800 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 325 | 08806 | GENERAL ELECTRIC COMINIATURE LAMP PRODUCTS DEPT |
| 13320 | F5308 | GIAT INDUSTRIES CENTRE DE SATORY |
| WE04.03.1901 | FAGN5 | JC LAMPES |
| 325 | 08108 | LAMP INDUSTRYFOR USE WITH INDUSTRY |
| LTX325 | 61342 | LAMPTRONIX CO LTD |
| 303051 | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| MS51608-3 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| 170-004-0003 | 99932 | MOOG INC.DBA MOOG COMPONENTS GROUP |
| 2409-965502PC986 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 325 | 62607 | PHILIPS ELECTRONICS NORTH AMERICACORPORATION |
| PL325 | 58451 | PRECISION LAMP INC |
| CM325 | R1120 | SATAIR A/S |
| 325 | R1120 | SATAIR A/S |
| 87-0159 | 63409 | TREMETRICS INCDIV OF FINNIGAN |
Technical Data | NSN 6240-00-635-9800
| Characteristic | Specifications |
|---|---|
| BASE STYLE | SPECIAL NO. 10-64 THREAD |
| BULB STYLE | T (TUBULAR) |
| BULB DESIGNATOR | T-1 1/4 |
| OVERALL LENGTH | 0.550 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| FILAMENT DESIGNATION | C-2R |
| WATTAGE RATING | 0.108 WATTS |
| VOLTAGE RATING | 3.000 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 0.190 AMPERES NOMINAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 350.0 |
| BURNING POSITION | |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| LIGHT CENTER LENGTH | 0.430 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 08108-325 MANUFACTURERS STANDARD |
