NSN 6240-00-635-9753
Part Details | GLOW LAMP
6240-00-635-9753 An item in which a gas is ionized to produce light energy of low persistence. It may include internal current limiting resistor.
Alternate Parts: 7550874, R2A, R2A(NE34), R2A(NE-34), R2A, R2A, NE34, M150983002, M15098/3-002, MILL15098, 6515026A12, 65-15026A-12, 870536, 87-0536, 1028117411, 10281174-11, 6240-00-635-9753, 00-635-9753, 6240006359753, 006359753
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1963 | 00-635-9753 | 05758 ( LAMP, GLOW ) |
REFERENCE DRAWINGS & PICTURES

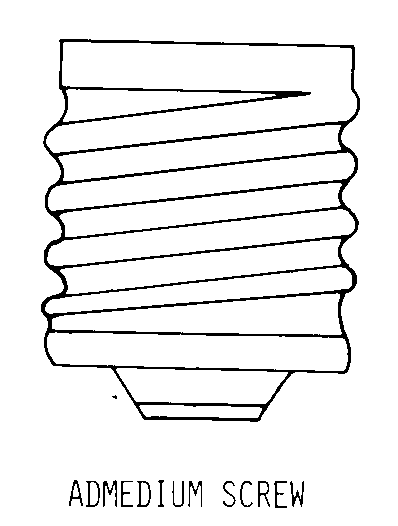

ADMEDIUM SCREW
S (STRAIGHT SIDE)
Cross Reference | NSN 6240-00-635-9753
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7550874 | 19204 | ARMY, UNITED STATES DEPARTMENT OFTHE |
| R2A | 71744 | CHICAGO MINIATURE LIGHTING LLCDBA CHICAGO MINIATURE OPTOELECTRON |
| R2A(NE-34) | 08806 | GENERAL ELECTRIC COMINIATURE LAMP PRODUCTS DEPT |
| R2A | 08806 | GENERAL ELECTRIC COMINIATURE LAMP PRODUCTS DEPT |
| R2A | 08108 | LAMP INDUSTRYFOR USE WITH INDUSTRY |
| NE34 | 08108 | LAMP INDUSTRYFOR USE WITH INDUSTRY |
| M15098/3-002 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MILL15098 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| 65-15026A-12 | 50012 | MOTOROLA COMMUNICATIONS GROUP PARTSDEPT |
| 87-0536 | 63409 | TREMETRICS INCDIV OF FINNIGAN |
| 10281174-11 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 6240-00-635-9753
| Characteristic | Specifications |
|---|---|
| BASE STYLE | ADMEDIUM SCREW |
| BULB STYLE | S (STRAIGHT SIDE) |
| BULB DESIGNATOR | S-14 |
| OVERALL LENGTH | 3.500 INCHES MAXIMUM |
| EMITTED LIGHT CHARACTERISTIC | RED |
| FILLING GAS TYPE | NEON |
| LIGHT INTENSITY LEVEL | NOT RATED |
| CIRCUIT VOLTAGE RATING IN VOLTS | 105.000 MINIMUM AND 125.000 MAXIMUM |
| WATTAGE RATING | 2.000 WATTS |
| RESISTOR RATING AND LOCATION | 3.500 KILOHMS INTERNAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 10000.0 |
| SPECIFICATION/STANDARD DATA | 08108-R2A MANUFACTURERS STANDARD |
