NSN 6240-00-577-8175
Part Details | INCANDESCENT LAMP
6240-00-577-8175 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: 3200160, 152285, 4001, 1753435, WL50, B8AZ13007B, B8A13007B, B8A13007B, B8AZ13007B, 4001, 5948501, 5948501, 6221, 4001, 10927, 4001, B8AZ13007B, B8AZ-13007B, D2AZ13007B, 6240-00-577-8175, 00-577-8175, 6240005778175, 005778175
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1963 | 00-577-8175 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

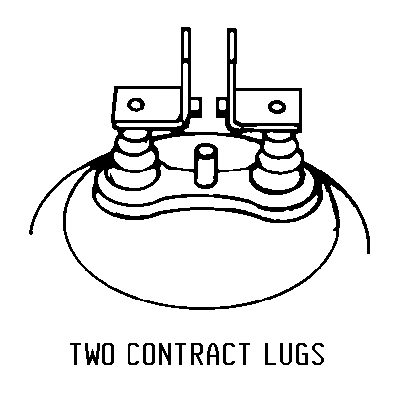

TWO CONTRACT LUGS (not contact)
A (ARBITRARY DESIGNATION)
Cross Reference | NSN 6240-00-577-8175
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3200160 | 99343 | CHRYSLER CORPENGINE AND COMPONENTS SALES |
| 152285 | 86403 | CHRYSLER CORPSERVICE AND PARTS OPNS |
| 4001 | 94988 | COOPER INDUSTRIES INCCHAMPION AVIATION PRODUCTS |
| 1753435 | 12204 | DAIMLER CHRYSLER |
| WL50 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| B8AZ13007B | 23040 | FORD MOTOR COFORD PARTS AND SERVICE DIV |
| B8A13007B | 23040 | FORD MOTOR COFORD PARTS AND SERVICE DIV |
| B8A13007B | 57526 | FORD MOTOR COMPANY |
| B8AZ13007B | 57526 | FORD MOTOR COMPANY |
| 4001 | 08806 | GENERAL ELECTRIC COMINIATURE LAMP PRODUCTS DEPT |
| 5948501 | 24617 | GENERAL MOTORS CORP |
| 5948501 | 73331 | GENERAL MOTORS CORPFISHER GUIDE DIV |
| 6221 | 74400 | HOBBS CORP |
| 4001 | 08108 | LAMP INDUSTRYFOR USE WITH INDUSTRY |
| 10927 | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
| 4001 | 62607 | PHILIPS ELECTRONICS NORTH AMERICACORPORATION |
| B8AZ-13007B | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
| D2AZ13007B | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 6240-00-577-8175
| Characteristic | Specifications |
|---|---|
| BASE STYLE | TWO CONTRACT LUGS (not contact) |
| BULB STYLE | 7 A (ARBITRARY DESIGNATION) |
| BULB DESIGNATOR | PAR-46 |
| OVERALL LENGTH | 4.000 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| LIGHT INTENSITY DISTRIBUTION FEATURE | PARABOLIC REFLECTOR |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| FILAMENT DESIGNATION | C-6 |
| WATTAGE RATING | 37.504 WATTS |
| VOLTAGE RATING | 12.800 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 2.930 AMPERES NOMINAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 300.0 |
| BURNING POSITION | |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| NONDEFINITIVE SPEC/STD DATA | III TYPE |
| END ITEM IDENTIFICATION | SUPPORT EQUIPMENT, B-1 AIRCRAFT; WHIDBEY ISLAND CLASS LSD; CARGO SYSTEM, 463L |
