NSN 6240-00-557-7471
Part Details | INCANDESCENT LAMP
6240-00-557-7471 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: WL71, W-L-71, 150PAR3FL115125V, 150PAR3FL115-125V, 289590, 6240-00-557-7471, 00-557-7471, 6240005577471, 005577471
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1963 | 00-557-7471 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

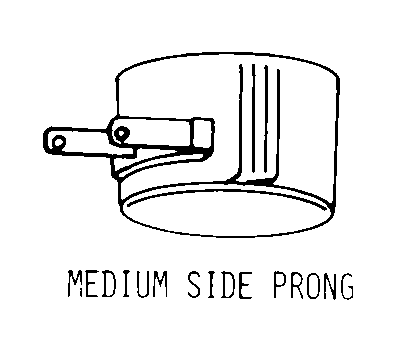

MEDIUM SIDE PRONG
A (ARBITRARY DESIGNATION)
Cross Reference | NSN 6240-00-557-7471
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| W-L-71 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 150PAR3FL115-125V | 08108 | LAMP INDUSTRYFOR USE WITH INDUSTRY |
| 289590 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
Technical Data | NSN 6240-00-557-7471
| Characteristic | Specifications |
|---|---|
| BASE STYLE | MEDIUM SIDE PRONG |
| BULB STYLE | 7 A (ARBITRARY DESIGNATION) |
| BULB DESIGNATOR | PAR-38 |
| OVERALL LENGTH | 4.312 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSLUCENT |
| LIGHT INTENSITY DISTRIBUTION FEATURE | PARABOLIC REFLECTOR |
| EMITTED LIGHT CHARACTERISTIC | WHITE |
| FILAMENT DESIGNATION | CC-6 |
| WATTAGE RATING | 150.000 WATTS |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 2000.0 |
| BURNING POSITION | |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| FEATURES PROVIDED | FILAMENT SHIELDING AND HEAT RESISTANT GLASS |
