NSN 6240-00-519-1178
Part Details | INCANDESCENT LAMP
6240-00-519-1178 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: DGS115120V, DGS115-120V, WL126, W-L-126, 6240-00-519-1178, 00-519-1178, 6240005191178, 005191178
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1963 | 00-519-1178 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

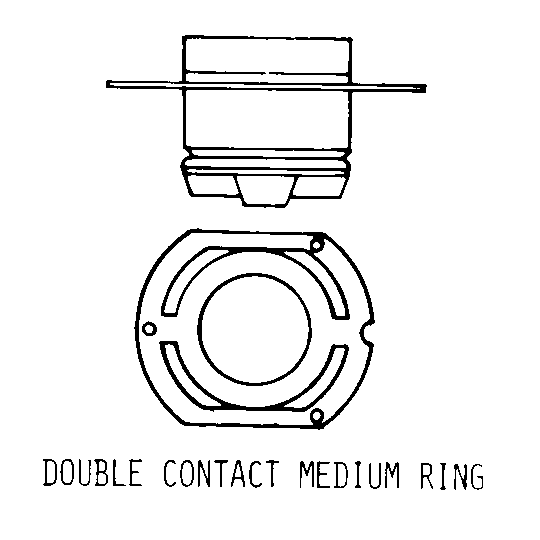

DOUBLE CONTACT MEDIUM RING
T (TUBULAR)
Cross Reference | NSN 6240-00-519-1178
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DGS115-120V | 80204 | AMERICAN NATIONAL STANDARDSINSTITUTE, INCORPORATED |
| W-L-126 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 6240-00-519-1178
| Characteristic | Specifications |
|---|---|
| BASE STYLE | DOUBLE CONTACT MEDIUM RING |
| BULB STYLE | T (TUBULAR) |
| BULB DESIGNATOR | T-12 |
| OVERALL LENGTH | 5.875 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | WHITE |
| FILAMENT DESIGNATION | C-13D |
| WATTAGE RATING | 1000.000 WATTS |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 10.0 |
| BURNING POSITION | BASE UP |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| LIGHT CENTER LENGTH | 3.500 INCHES NOMINAL |
| FEATURES PROVIDED | FILAMENT SHIELDING AND HEAT RESISTANT GLASS |
