NSN 6240-00-495-6736
Part Details | FLASHTUBE LAMP
6240-00-495-6736 A lamp that produces repeated light flashes of exceedingly high intensity for short durations. May include incandescent lamp within itself.
Alternate Parts: MX2, 6240-00-495-6736, 00-495-6736, 6240004956736, 004956736
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | FEB 12, 1971 | 00-495-6736 | 03314 ( LAMP, FLASHTUBE ) |
REFERENCE DRAWINGS & PICTURES

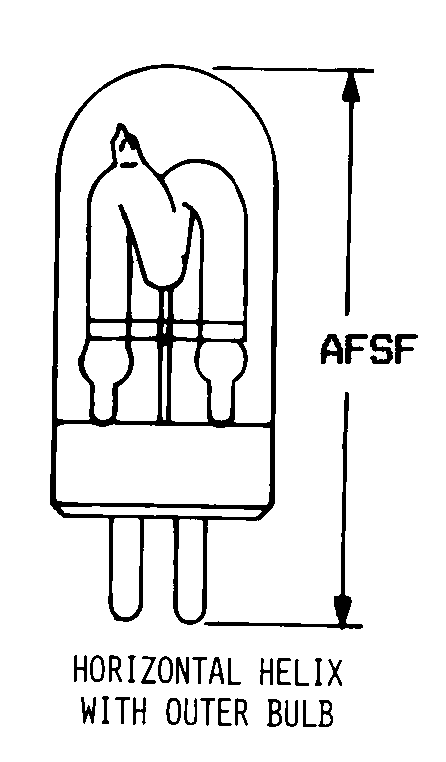

HORIZONTAL HELIX WITH OUTER BULB

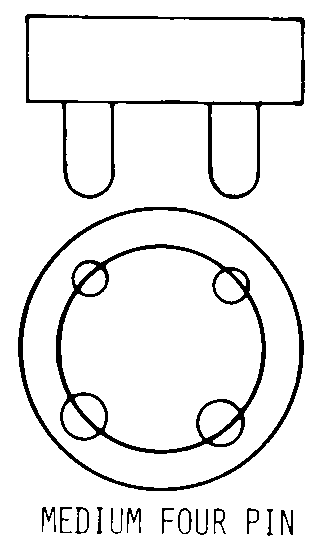

MEDIUM FOUR PIN
Cross Reference | NSN 6240-00-495-6736
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MX2 | 70558 | AMGLO KEMLITE LABORATORIES, INC.DBA AMGLO |
Technical Data | NSN 6240-00-495-6736
| Characteristic | Specifications |
|---|---|
| BASE STYLE | MEDIUM FOUR PIN |
| FLASHTUBE STYLE | HORIZONTAL HELIX WITH OUTER BULB |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | WHITE |
| FILLING GAS TYPE | |
| VOLTAGE RATING | 700.000 VOLTS MINIMUM AND 1200.000 VOLTS MAXIMUM |
| INPUT RATING IN WATT-SECONDS | 200.0 |
| LIGHT CENTER LENGTH | 1.875 INCHES NOMINAL |
