NSN 6240-00-494-7144
Part Details | MERCURY VAPOR LAMP
6240-00-494-7144 An item which produces light by an electric arc between two electrodes in an ionized mercury vapor atmosphere.
Alternate Parts: 73A10, 673A10, 6240-00-494-7144, 00-494-7144, 6240004947144, 004947144
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1963 | 00-494-7144 | 03879 ( LAMP, MERCURY VAPOR ) |
REFERENCE DRAWINGS & PICTURES

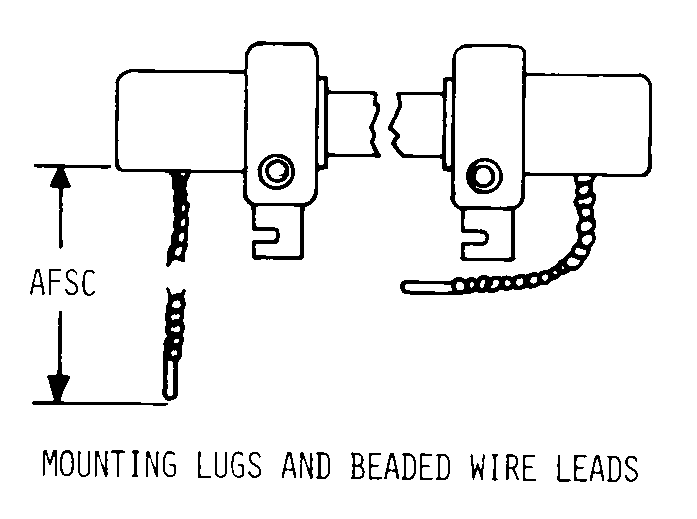

MOUNTING LUGS AND BEADED WIRE LEADS
T (TUBULAR)
Cross Reference | NSN 6240-00-494-7144
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 73A10 | 29218 | HANOVIA SPECIALTY LIGHTING LLC |
| 673A10 | 29218 | HANOVIA SPECIALTY LIGHTING LLC |
Technical Data | NSN 6240-00-494-7144
| Characteristic | Specifications |
|---|---|
| BASE STYLE | MOUNTING LUGS AND BEADED WIRE LEADS |
| WIRE LEAD LENGTH | 2.750 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 PIN |
| BULB STYLE | T (TUBULAR) |
| BULB DESIGNATOR | T-7 |
| OVERALL LENGTH | 10.000 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | BLUE-WHITE |
| WATTAGE RATING | 550.000 WATTS |
| RATED AVERAGE LIFE | NOT RATED |
| BURNING POSITION | HORIZONTAL |
| FEATURES PROVIDED | HEAT RESISTANT GLASS |
