NSN 6240-00-311-6180
Part Details | FLASHTUBE LAMP
6240-00-311-6180 A lamp that produces repeated light flashes of exceedingly high intensity for short durations. May include incandescent lamp within itself.
Alternate Parts: 030601, 030-601, 92220054, 9-222-0054, 030603, 030-603, EP302, 6240-00-311-6180, 00-311-6180, 6240003116180, 003116180
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | OCT 31, 1973 | 00-311-6180 | 03314 ( LAMP, FLASHTUBE ) |
REFERENCE DRAWINGS & PICTURES

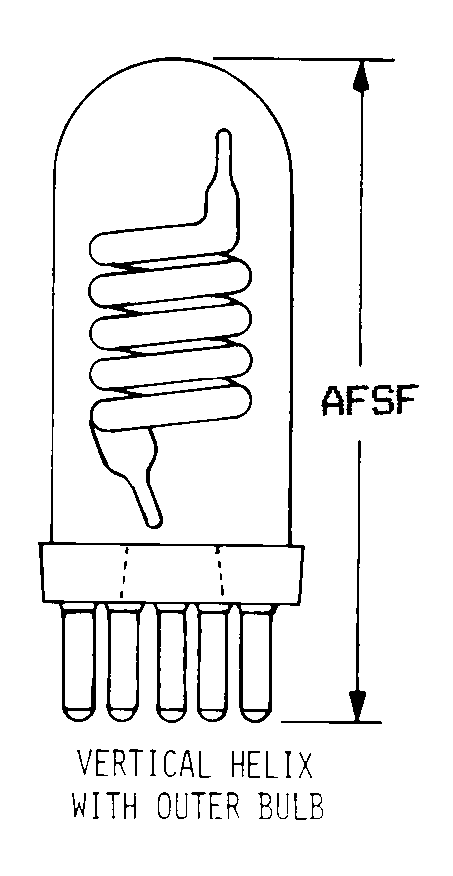

VERTICAL HELIX WITH OUTER BULB

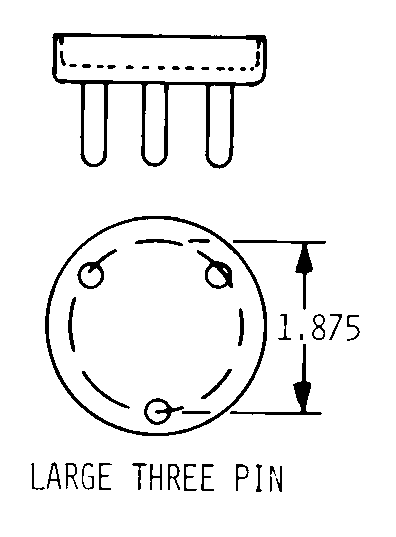

LARGE THREE PIN
Cross Reference | NSN 6240-00-311-6180
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 030-601 | 90838 | BERKEY TECHNICAL DIVBERKEY PHOTO INC |
| 9-222-0054 | 90838 | BERKEY TECHNICAL DIVBERKEY PHOTO INC |
| 030-603 | 90838 | BERKEY TECHNICAL DIVBERKEY PHOTO INC |
| EP302 | 47097 | PHOTOGENIC MACHINE CO THE |
Technical Data | NSN 6240-00-311-6180
| Characteristic | Specifications |
|---|---|
| BASE STYLE | LARGE THREE PIN |
| FLASHTUBE STYLE | VERTICAL HELIX WITH OUTER BULB |
| FLASHTUBE OVERALL LENGTH | 5.250 INCHES NOMINAL |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSLUCENT |
| EMITTED LIGHT CHARACTERISTIC | WHITE |
| FILLING GAS TYPE | XENON |
| VOLTAGE RATING | 7.000 KILOVOLTS NOMINAL |
| INPUT RATING IN WATT-SECONDS | 400.0 |
| MAXIMUM FLASHING RATE PER SECOND | 150 |
| LIGHT CENTER LENGTH | 2.375 INCHES NOMINAL |
