NSN 6240-00-299-6968
Part Details | GLOW LAMP
6240-00-299-6968 An item in which a gas is ionized to produce light energy of low persistence. It may include internal current limiting resistor.
Alternate Parts: L9A, NE31, NE31, 6240-00-299-6968, 00-299-6968, 6240002996968, 002996968
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1963 | 00-299-6968 | 05758 ( LAMP, GLOW ) |
REFERENCE DRAWINGS & PICTURES

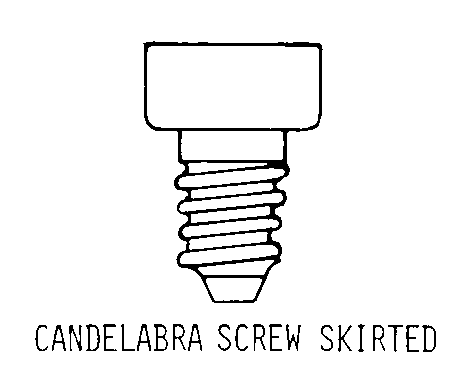

CANDELABRA SCREW SKIRTED
G (GLOBULAR)
Cross Reference | NSN 6240-00-299-6968
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| L9A | 80204 | AMERICAN NATIONAL STANDARDSINSTITUTE, INCORPORATED |
| NE31 | 08805 | GENERAL ELECTRIC COMPANYDBA GE |
| NE31 | 08108 | LAMP INDUSTRYFOR USE WITH INDUSTRY |
Technical Data | NSN 6240-00-299-6968
| Characteristic | Specifications |
|---|---|
| BASE STYLE | CANDELABRA SCREW SKIRTED |
| BULB STYLE | G (GLOBULAR) |
| BULB DESIGNATOR | G-10 |
| OVERALL LENGTH | 2.438 INCHES NOMINAL |
| EMITTED LIGHT CHARACTERISTIC | ORANGE-RED |
| FILLING GAS TYPE | NEON |
| LIGHT INTENSITY LEVEL | NOT RATED |
| CIRCUIT VOLTAGE RATING IN VOLTS | 105.000 MINIMUM AND 125.000 MAXIMUM |
| WATTAGE RATING | 1.000 WATTS |
| RESISTOR RATING AND LOCATION | 7.500 KILOHMS EXTERNAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 10000.0 |
| SPECIFICATION/STANDARD DATA | 08108-NE-31 MANUFACTURERS STANDARD |
