NSN 6240-00-299-6862
Part Details | INCANDESCENT LAMP
6240-00-299-6862 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: 833736, 21260223, 212602-23, 6240-00-299-6862, 00-299-6862, 6240002996862, 002996862
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1963 | 00-299-6862 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

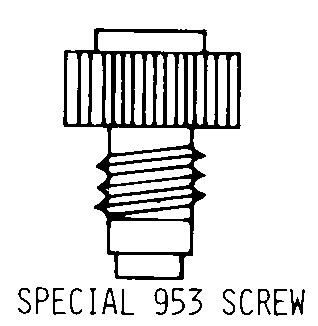

SPECIAL 953 SCREW
A (ARBITRARY DESIGNATION)
Cross Reference | NSN 6240-00-299-6862
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 833736 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 212602-23 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 6240-00-299-6862
| Characteristic | Specifications |
|---|---|
| BASE STYLE | SPECIAL 953 SCREW |
| BULB STYLE | 5 A (ARBITRARY DESIGNATION) |
| OVERALL LENGTH | 0.687 INCHES NOMINAL |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSLUCENT |
| EMITTED LIGHT CHARACTERISTIC | RED |
| FILAMENT DESIGNATION | C-2R |
| WATTAGE RATING | 0.980 WATTS |
| VOLTAGE RATING | 28.000 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 0.035 AMPERES NOMINAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 350.0 |
| BURNING POSITION | |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| SPECIAL FEATURES | SANDBLASTED BOWL |
