NSN 6240-00-299-3387
Part Details | INCANDESCENT LAMP
6240-00-299-3387 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: 25F15FL, 25FFT120V, 25FFT, 25F/FT, 6240-00-299-3387, 00-299-3387, 6240002993387, 002993387
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1963 | 00-299-3387 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES
MEDIUM SCREW

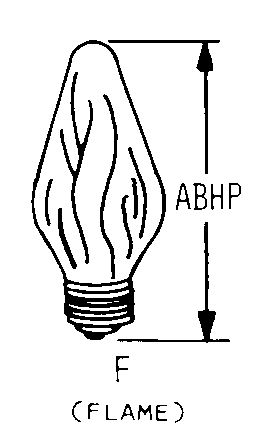

F (FLAME)
Cross Reference | NSN 6240-00-299-3387
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 25F15FL | 56589 | 21ST CENTURY ENTERPRISES INC |
| 25FFT120V | 08108 | LAMP INDUSTRYFOR USE WITH INDUSTRY |
| 25F/FT | 62607 | PHILIPS ELECTRONICS NORTH AMERICACORPORATION |
Technical Data | NSN 6240-00-299-3387
| Characteristic | Specifications |
|---|---|
| BASE STYLE | MEDIUM SCREW |
| BULB STYLE | F (FLAME) |
| BULB DESIGNATOR | F-15 |
| OVERALL LENGTH | 4.500 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | FLAMETINT |
| FILAMENT DESIGNATION | C-9 |
| WATTAGE RATING | 25.000 WATTS |
| VOLTAGE RATING | 120.000 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 0.208 AMPERES NOMINAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 750.0 |
| BURNING POSITION | |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
