NSN 6240-00-295-0910
Part Details | INCANDESCENT LAMP
6240-00-295-0910 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: 300T103LR, 300T10-3LR, 6240-00-295-0910, 00-295-0910, 6240002950910, 002950910
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1963 | 00-295-0910 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

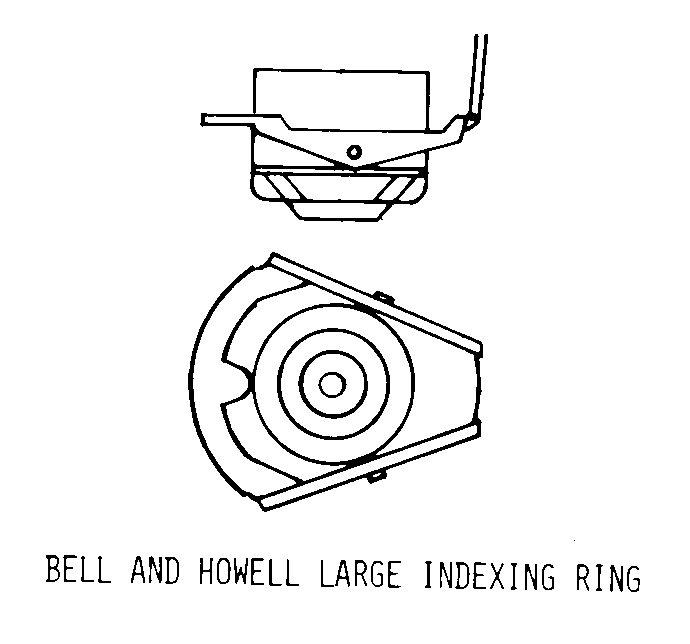

BELL AND HOWELL LARGE INDEXING RING
T (TUBULAR)
Cross Reference | NSN 6240-00-295-0910
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 300T10-3LR | 80204 | AMERICAN NATIONAL STANDARDSINSTITUTE, INCORPORATED |
Technical Data | NSN 6240-00-295-0910
| Characteristic | Specifications |
|---|---|
| BASE STYLE | BELL AND HOWELL LARGE INDEXING RING |
| BULB STYLE | T (TUBULAR) |
| BULB DESIGNATOR | T-10 |
| OVERALL LENGTH | 5.500 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | WHITE |
| FILAMENT DESIGNATION | C-13D |
| WATTAGE RATING | 300.000 WATTS |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 24.0 |
| BURNING POSITION | HORIZONTAL |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| FEATURES PROVIDED | FILAMENT SHIELDING AND HEAT RESISTANT GLASS |
