NSN 6240-00-247-5156
Part Details | FLASHTUBE LAMP
6240-00-247-5156 A lamp that produces repeated light flashes of exceedingly high intensity for short durations. May include incandescent lamp within itself.
Alternate Parts: FT151, 65C14266, 65C14266, 6240-00-247-5156, 00-247-5156, 6240002475156, 002475156
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JUN 03, 1973 | 00-247-5156 | 03314 ( LAMP, FLASHTUBE ) |
REFERENCE DRAWINGS & PICTURES
LINEAR

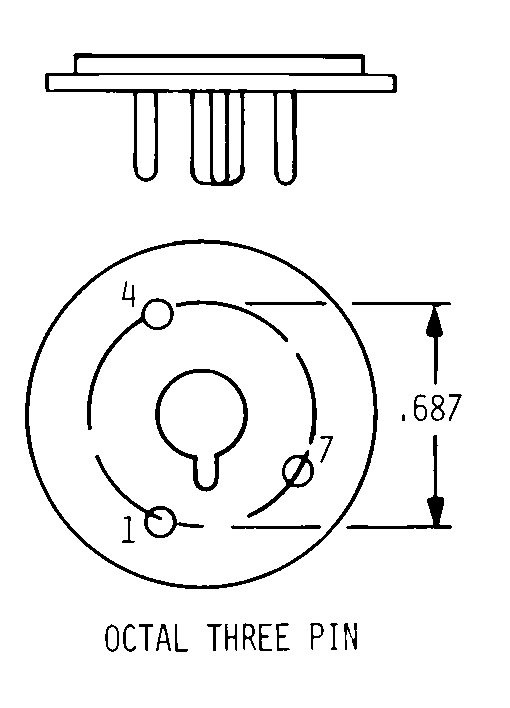

OCTAL THREE PIN
Cross Reference | NSN 6240-00-247-5156
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FT151 | 06247 | GENERAL ELECTRIC COLAMP REFRACTORY METALS PRODUCTS DEPT |
| 65C14266 | 98747 | OGDEN AIR LOGISTICS CENTER |
| 65C14266 | 98750 | SAN ANTONIO AIR LOGISTICS CENTER |
Technical Data | NSN 6240-00-247-5156
| Characteristic | Specifications |
|---|---|
| BASE STYLE | OCTAL THREE PIN |
| FLASHTUBE STYLE | 3 LINEAR |
| FLASHTUBE OVERALL LENGTH | 3.200 INCHES NOMINAL |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | WHITE |
| FILLING GAS TYPE | XENON |
| VOLTAGE RATING | 450.000 VOLTS NOMINAL |
| INPUT RATING IN WATT-SECONDS | 125.0 |
| MAXIMUM FLASHING RATE PER SECOND | 60 |
