NSN 6130-00-243-0380

Part Details | INTERRUPTER VIBRATOR

6130-00-243-0380 An electromechanical device which uses a coil operated switching mechanism to convert a direct current input into a pulsating direct current output of the same value. The direct current input is periodically interrupted at the resonant frequency of a coil driven vibrating armature (reed). The resultant pulsating direct current output produces an inherent alternating current component necessary for ultimate purposes of transformation. It does not include a means of amplification or rectification. For items designed to operate over a wide and comparatively high frequency range and whose drive coil may be excited from either an alternating current or a direct current, see CHOPPER, ELECTRONIC.

Alternate Parts: V6361, VB13A, VB13ALLLETTERS, G681, 6130-00-243-0380, 00-243-0380, 6130002430380, 002430380

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
61JAN 01, 196300-243-038000743 ( VIBRATOR, INTERRUPTER )
REFERENCE DRAWINGS & PICTURES

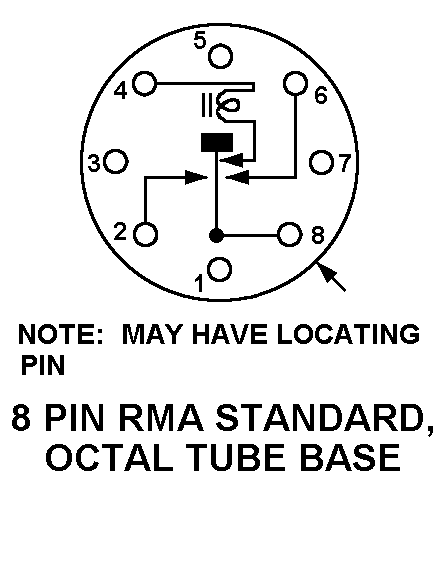

8 PIN STANDARD OCTAL TUBE

Cross Reference | NSN 6130-00-243-0380
Part Number Cage Code Manufacturer
V636176854ELECTRO SWITCH CORP.DBA OAK GRISGSBY
VB13A80063US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS
VB13ALLLETTERS80063US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS
G68137942YOSEMITE INVESTMENT INCDBA NORTH AMERICAN CAPACITOR CO
Technical Data | NSN 6130-00-243-0380
Characteristic Specifications
INPUT VOLTAGE RATINGA12.0 DC VOLTS
INPUT CURRENT RATING2.5 AMPERES NOMINAL
DRIVE VOLTAGE RELATIONSHIP TO INPUT VOLTAGE UNEQUAL
OUTPUT FREQUENCY RATING106.9 HERTZ MINIMUM AND 123.5 HERTZ MAXIMUM
REED TYPECN ANY ACCEPTABLE
HERMETICALLY SEALED FEATURE PROVIDED
OVERALL DIAMETER1.500 INCHES NOMINAL
OVERALL LENGTH2.875 INCHES NOMINAL
BASE CONNECTION WIRING STYLE 8 PIN STANDARD OCTAL TUBE
END ITEM IDENTIFICATIONTYPE NO. PE-120
