NSN 5999-01-024-5198
Part Details | ELECTRICAL-ELECTRONIC COMPONENT HEAT SINK
5999-01-024-5198 An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies.
Alternate Parts: 5002797, 5002797, 5002797, 5999-01-024-5198, 01-024-5198, 5999010245198, 010245198
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 12, 1976 | 01-024-5198 | 61433 ( HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT ) |

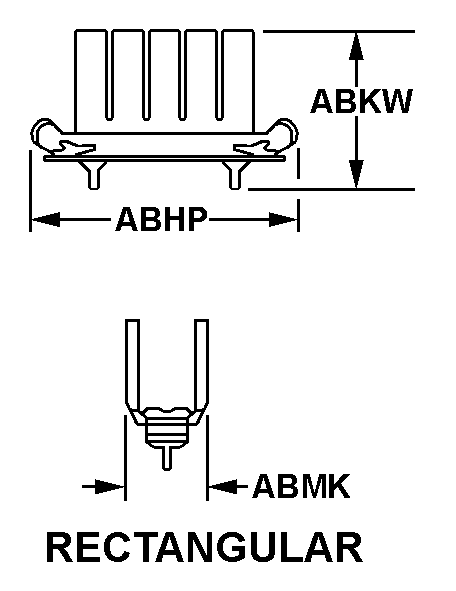

REFERENCE DRAWINGS & PICTURES
RECTANGULAR
Cross Reference | NSN 5999-01-024-5198
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5002797 | 73842 | GOODYEAR TIRE AND RUBBER CO THE |
| 5002797 | 25500 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 5002797 | 0B9R9 | MEGGITT AIRCRAFT BRAKING SYSTEMSCORPORATION |
Technical Data | NSN 5999-01-024-5198
| Characteristic | Specifications |
|---|---|
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 5.148 INCHES NOMINAL |
| OVERALL HEIGHT | 0.340 INCHES NOMINAL |
| OVERALL WIDTH | 2.597 INCHES NOMINAL |
| MATERIAL | BERYLLIUM |
| SURFACE TREATMENT | CHROMATE |
| ACCOMMODATED DEVICE MOUNTING HOLE QUANTITY | 2 |
| SPECIAL FEATURES | MANUFACTURERS NAME: HEATSINK,SEGMENTED; 2 UNTHREATED .40 INCH DIAMETER MOUNTING HOLES |
