NSN 5999-01-014-4964
Part Details | ELECTRICAL-ELECTRONIC COMPONENT HEAT SINK
5999-01-014-4964 An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies.
Alternate Parts: 77D605530G1, 77D605530G1, 77D605530G001, 5999-01-014-4964, 01-014-4964, 5999010144964, 010144964
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 23, 1975 | 01-014-4964 | 61433 ( HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT ) |

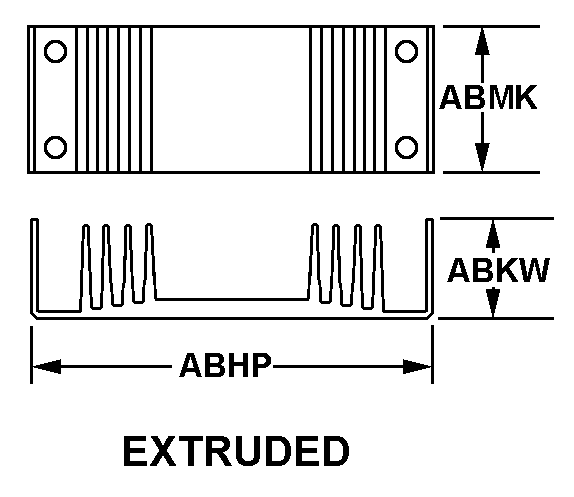

REFERENCE DRAWINGS & PICTURES
EXTRUDED
Cross Reference | NSN 5999-01-014-4964
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 77D605530G1 | 28031 | GEORGE INDUSTRIES LLC |
| 77D605530G1 | 03538 | LOCKHEED MARTIN CORPORATIONDIV RMS |
| 77D605530G001 | 03538 | LOCKHEED MARTIN CORPORATIONDIV RMS |
Technical Data | NSN 5999-01-014-4964
| Characteristic | Specifications |
|---|---|
| BODY STYLE | EXTRUDED |
| OVERALL LENGTH | 28.000 INCHES NOMINAL |
| OVERALL HEIGHT | 1.500 INCHES NOMINAL |
| OVERALL WIDTH | 5.300 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 6061 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250 TO 11 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-M-8625,TYPE 2 MIL SPEC SINGLE TREATMENT RESPONSE |
| SPECIAL FEATURES | COLOR WHITE |
