NSN 5999-00-978-7433

Part Details | LIGHT-SWITCH ASSEMBLY

5999-00-978-7433 An electrical device consisting of a Switch (1) and two or more lights, or two or more switches and two or more lights, mounted on a common mounting. The lights are not intended for illumination but are present for the purpose of indication. Each item may be separable and capable of functioning individually, or the items may be fabricated into a common inseparable body, incapable of functioning individually. It may include wall plate or box cover and it may be complete with box. Excludes push, pull, push-pull, and toggle switches with a lamp mounted integrally in the actuator.

Alternate Parts: 800H2HAY, 800H-2HAY, 5999-00-978-7433, 00-978-7433, 5999009787433, 009787433

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JAN 01, 196200-978-743317647 ( LIGHT-SWITCH ASSEMBLY )
REFERENCE DRAWINGS & PICTURES

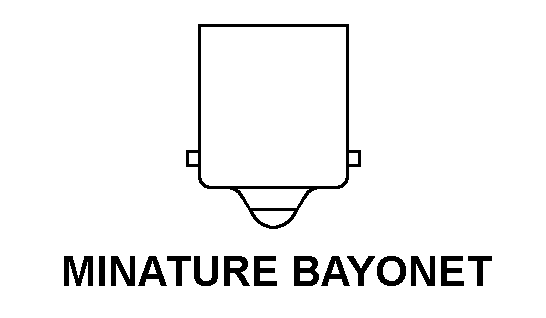

MINIATURE BAYONET

Cross Reference | NSN 5999-00-978-7433
Part Number Cage Code Manufacturer
800H-2HAY01121ROCKWELL AUTOMATION, INC.
Technical Data | NSN 5999-00-978-7433
Characteristic Specifications
COMPONENT TYPE AND QUANTITY2 SWITCH AND 1 LIGHT
LAMP BASE STYLE MINIATURE BAYONET
LAMP BULB SIZE DESIGNATORG-4-1/2
LENS COLOR RED
SWITCH TYPE PUSH
ENVIRONMENTAL PROTECTION DUSTPROOF
FEATURES PROVIDED TRANSFORMER AND BOX COVER AND KNOCKOUT ENTRANCE
SPECIAL FEATURESINCLOSURE MATERIAL:STEEL; ASSY O/A H:3.937 IN. NOM; SWITCH CURRENT RATING IN AMPS:1ST VARIATION 1.2,2ND VARIATION 0.2; SWITCH CURRENT TYPE:1ST VARIATION AC,2ND VARIATION DC; LAMP:INCLUDED; OPENING DIA.:1 IN. NOM.; ASSY O/A W:3.375 IN. NOM; ASSY O/A L:8.625 IN. NOM; MNTG CONFIG:MNTS BY TWO 0.266 IN. DIA. MTG HOLES SPACED 6.312 IN. C TO C; VOLTAGE RATING:1ST AND 2ND VARIATIONS 600.0; PRIMARY VOLTAGE RATING:440 V NOM; SECONDARY VOLTAGE RATING:6.3 V NOM; LUMINOUS ACTUATOR:NOT INCLUDED; UNTHREADED ENTRANCE QTY:2; INCLOSURE SURFACE TREATMENT:ENAMEL; CONTACT ARRANGEMENT:2 CIRCUIT,DOUBLE BREAK; MARK:START-STOP
