NSN 5999-00-951-2943
Part Details | ELECTRICAL CLAMP
5999-00-951-2943 A clamp specifically designed to carry electric current. See also CLIP, ELECTRICAL; SPLICE, CONDUCTOR; TERMINAL, LUG; and RETAINER (as modified). Excludes BRACKET, PIPE.
Alternate Parts: SP821, 5999-00-951-2943, 00-951-2943, 5999009512943, 009512943
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1962 | 00-951-2943 | 00865 ( CLAMP, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

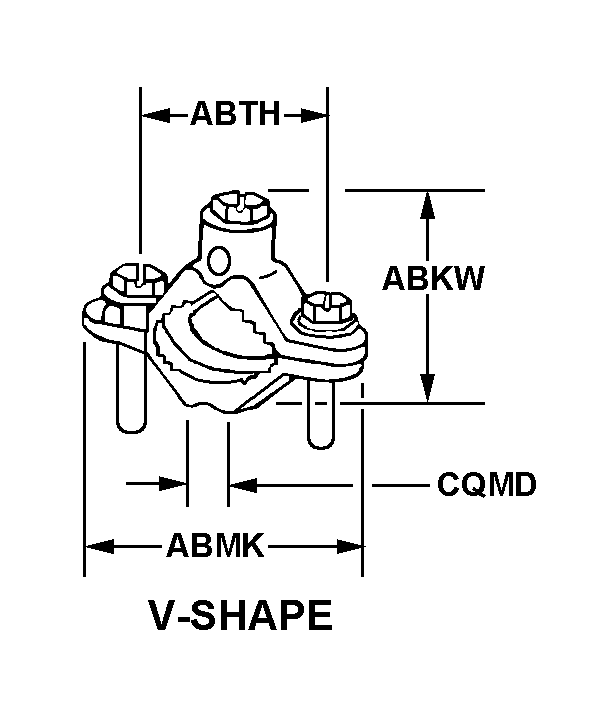

V-SHAPE
Cross Reference | NSN 5999-00-951-2943
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SP821 | 24446 | GENERAL ELECTRIC COMPANY |
Technical Data | NSN 5999-00-951-2943
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | V-SHAPE |
| OVERALL LENGTH | 2.250 INCHES NOMINAL |
| OVERALL HEIGHT | 1.625 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 1.625 INCHES NOMINAL |
| ACCOMMODATION HOLE WIDTH | 0.937 INCHES NOMINAL |
| MOUNTING METHOD | SCREW |
| MOUNTING DEVICE QUANTITY | 2 |
| CONDUCTOR ACCOMMODATION QUANTITY | 1 |
| SPECIAL FEATURES | USED TO GROUND NO 8 6 4AWG COPPER WIRE TO 1/2 3/4 1 IN WATER PIPE |
