NSN 5999-00-938-6292
Part Details | ELECTRICAL-ELECTRONIC COMPONENT HEAT SINK
5999-00-938-6292 An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies.
Alternate Parts: 7237871P001, 5999-00-938-6292, 00-938-6292, 5999009386292, 009386292
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 17, 1967 | 00-938-6292 | 61433 ( HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT ) |
REFERENCE DRAWINGS & PICTURES

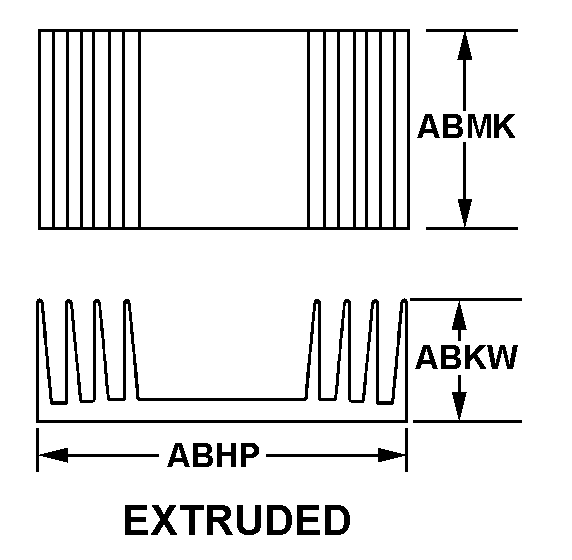

EXTRUDED
Cross Reference | NSN 5999-00-938-6292
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7237871P001 | 03538 | LOCKHEED MARTIN CORPORATIONDIV RMS |
Technical Data | NSN 5999-00-938-6292
| Characteristic | Specifications |
|---|---|
| BODY STYLE | EXTRUDED |
| OVERALL LENGTH | 1.750 INCHES NOMINAL |
| OVERALL HEIGHT | 0.500 INCHES NOMINAL |
| OVERALL WIDTH | 1.500 INCHES NOMINAL |
| END ITEM IDENTIFICATION | AN/SQS-26AXR |
