NSN 5999-00-938-1934
Part Details | ELECTRICAL-ELECTRONIC COMPONENT HEAT SINK
5999-00-938-1934 An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies.
Alternate Parts: 77C7084312, 77C708431-2, 77C708431, 77C708431P002, 5999-00-938-1934, 00-938-1934, 5999009381934, 009381934
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 13, 1967 | 00-938-1934 | 61433 ( HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT ) |
REFERENCE DRAWINGS & PICTURES

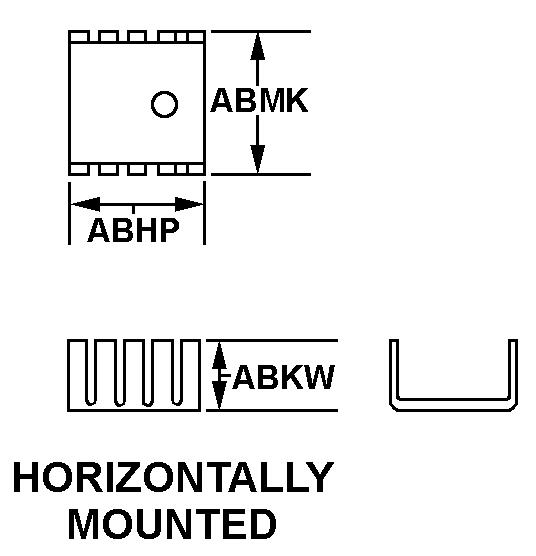

HORIZONTALLY MOUNTED
Cross Reference | NSN 5999-00-938-1934
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 77C708431-2 | 03538 | LOCKHEED MARTIN CORPORATIONDIV RMS |
| 77C708431 | 03538 | LOCKHEED MARTIN CORPORATIONDIV RMS |
| 77C708431P002 | 03538 | LOCKHEED MARTIN CORPORATIONDIV RMS |
Technical Data | NSN 5999-00-938-1934
| Characteristic | Specifications |
|---|---|
| BODY STYLE | HORIZONTALLY MOUNTED |
| OVERALL LENGTH | 12.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.720 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 5052 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250 TO 8 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE II,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE |
| END ITEM IDENTIFICATION | RD-293B/UYK-5(V) |
