NSN 5999-00-931-7627
Part Details | ELECTRICAL-ELECTRONIC COMPONENT MOUNTING PAD
5999-00-931-7627 An item fabricated from electrically nonconductive material specifically designed to provide a support for mounting an electrical and/or an electronic component such as a semiconductor device, relay, or resistor into the next higher assembly. It isolates the component from the mounting surface of the next higher assembly, it may act as a strain relief to avoid damage to the component seal, and it may permit soldering of the component to the next higher assembly without damage. It includes holes, notches, or other provisions for physical alignment and spacing of electrical leads and/or other mounting facilities projecting from the component it mounts. It may also afford protection from shock or vibration. It may be either nonthermally conductive which protects the component from temperature changes in the next higher assembly or it may be thermally conductive which permits heat generated in the component to be drained out to a heat sink. For items whose function is electrical insulation only, see INSULATOR, (as modified). Excludes HOLDER, (as modified); RETAINER, (as modified), and SPACER, PLATE.
Alternate Parts: 52X050P001, 13079925, C706810278, C7068-10278, 13079925, 10278DAP, 5999-00-931-7627, 00-931-7627, 5999009317627, 009317627
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | SEP 19, 1966 | 00-931-7627 | 61934 ( MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT ) |
REFERENCE DRAWINGS & PICTURES

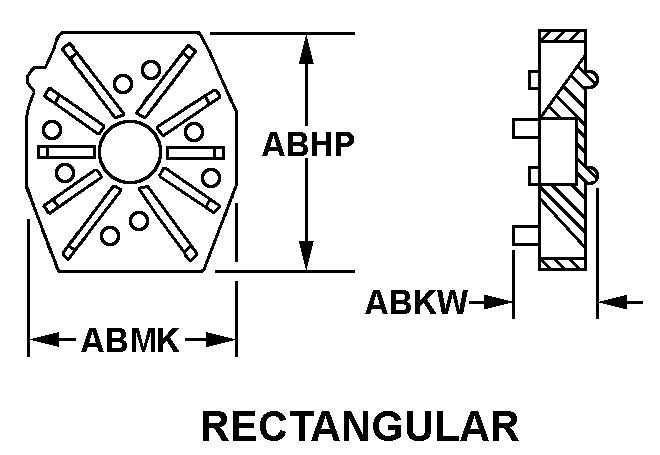

RECTANGULAR

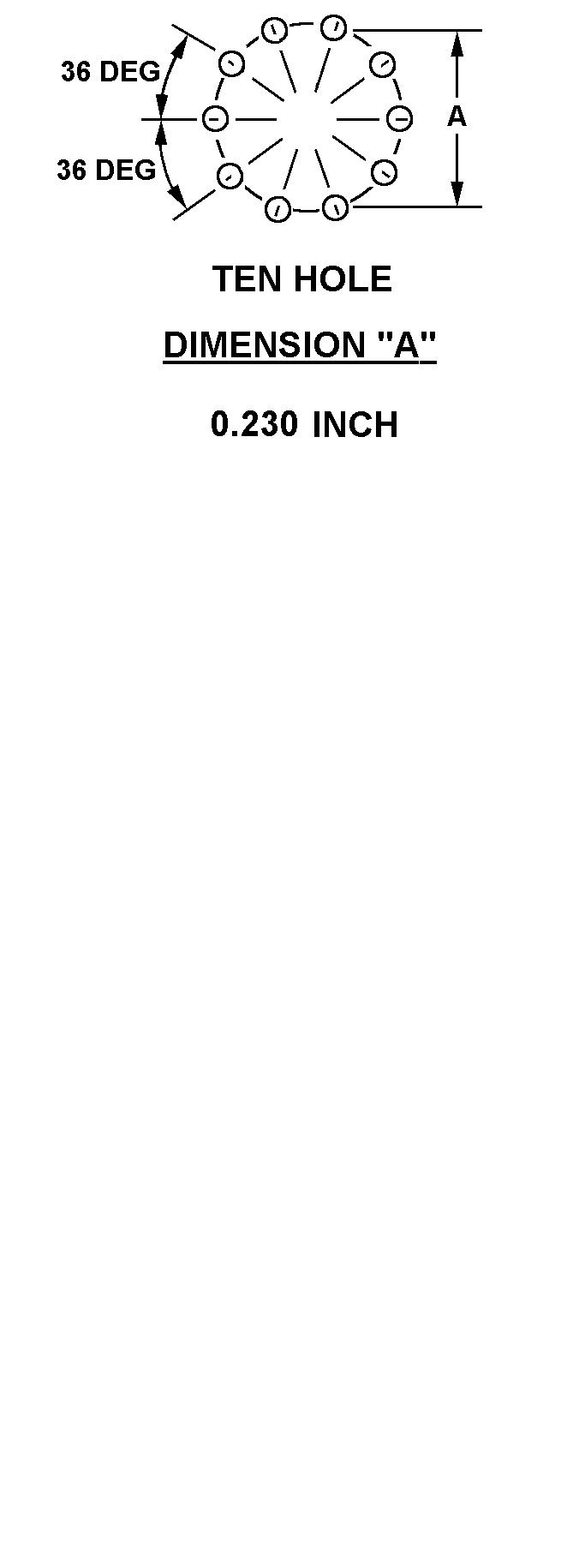

TEN HOLE - 0.230 INCH
Cross Reference | NSN 5999-00-931-7627
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 52X050P001 | A1615 | LEONARDO S.P.A A LAND & NAVALDEFE ELECTRONICS DIVISION |
| 13079925 | 04939 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| C7068-10278 | 81755 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
| 13079925 | 58260 | PROGRAM MANAGER ADVANCED ATTACKHELICOPTER BARCOM AMCPM-AAH |
| 10278DAP | 07047 | ROSS MILTON CO THE |
Technical Data | NSN 5999-00-931-7627
| Characteristic | Specifications |
|---|---|
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 0.390 INCHES NOMINAL |
| OVERALL HEIGHT | 0.090 INCHES NOMINAL |
| OVERALL WIDTH | 0.365 INCHES NOMINAL |
| COLOR | BLACK |
| MATERIAL | PLASTIC DIALLYL PHTHALATE MINERAL FILLED |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14F,TYPE SDG MIL SPEC SINGLE MATERIAL RESPONSE |
| ACCOMMODATED DEVICE MOUNTING HOLE PATTERN STYLE | TEN HOLE - 0.230 INCH |
| ACCOMMODATED DEVICE MOUNTING HOLE QUANTITY | 10 |
