NSN 5999-00-928-5602
Part Details | ELECTRONIC SHIELDING GASKET
5999-00-928-5602 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Alternate Parts: 0803011456, 08-0301-1456, 42844, 42-844, 95084025, 950840-25, 42844, 42-844, 0803011456, 08-0301-1456, 01, 5999-00-928-5602, 00-928-5602, 5999009285602, 009285602
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 24, 1966 | 00-928-5602 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |

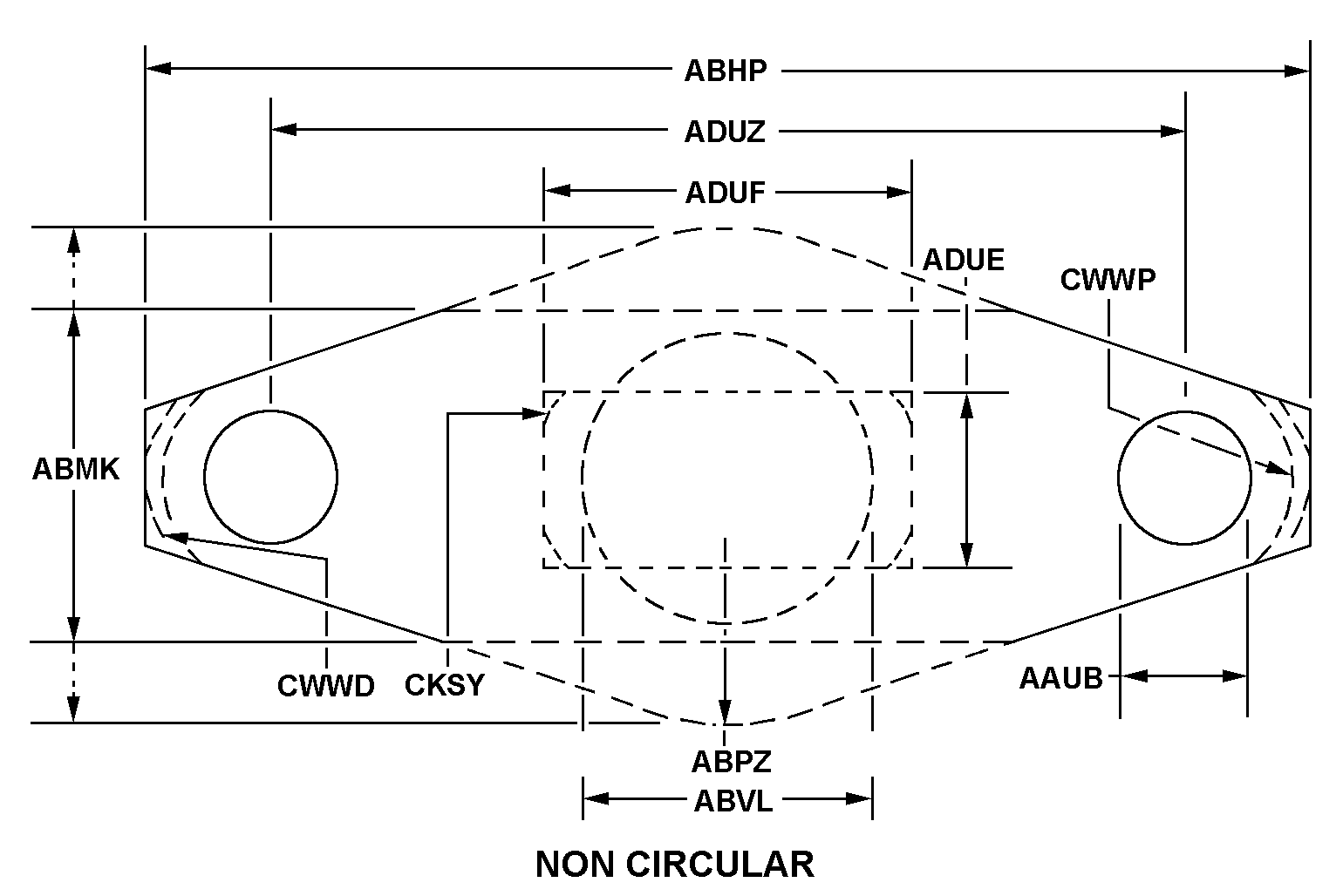

REFERENCE DRAWINGS & PICTURES
METAL
NON-CIRCULAR
Cross Reference | NSN 5999-00-928-5602
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 08-0301-1456 | 12881 | METAL TEXTILES CORPORATIONDBA METAL TEXTILES |
| 42-844 | 12881 | METAL TEXTILES CORPORATIONDBA METAL TEXTILES |
| 950840-25 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NAVIGATION AND MARITIME SYSTEMS |
| 42-844 | 18565 | PARKER-HANNIFIN CORPORATIONDBA PARKER CHOMERICS DIV |
| 08-0301-1456 | 18565 | PARKER-HANNIFIN CORPORATIONDBA PARKER CHOMERICS DIV |
| 01 | 07700 | TECHNICAL WIRE PRODUCTS LLCDBA TWP |
Technical Data | NSN 5999-00-928-5602
| Characteristic | Specifications |
|---|---|
| ENVIRONMENTAL PROTECTION MATERIAL LOCATION | THROUGHOUT RF SHIELDING GASKET |
| CROSS-SECTIONAL SHAPE STYLE | 9 METAL |
| CROSS-SECTIONAL HEIGHT | 0.020 INCHES NOMINAL |
| STYLE DESIGNATOR | NON-CIRCULAR |
| HOLE DIAMETER | 0.120 INCHES NOMINAL |
| OVERALL LENGTH | 1.593 INCHES NOMINAL |
| END RADIUS | 0.045 INCHES NOMINAL |
| APERTURE WIDTH | 0.531 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 1.000 INCHES NOMINAL |
| APERTURE CORNER RADIUS | 0.015 INCHES NOMINAL |
| SIDE RADIUS | 0.150 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 2 |
