NSN 5999-00-922-4894
Part Details | ELECTRICAL-ELECTRONIC COMPONENT MOUNTING PAD
5999-00-922-4894 An item fabricated from electrically nonconductive material specifically designed to provide a support for mounting an electrical and/or an electronic component such as a semiconductor device, relay, or resistor into the next higher assembly. It isolates the component from the mounting surface of the next higher assembly, it may act as a strain relief to avoid damage to the component seal, and it may permit soldering of the component to the next higher assembly without damage. It includes holes, notches, or other provisions for physical alignment and spacing of electrical leads and/or other mounting facilities projecting from the component it mounts. It may also afford protection from shock or vibration. It may be either nonthermally conductive which protects the component from temperature changes in the next higher assembly or it may be thermally conductive which permits heat generated in the component to be drained out to a heat sink. For items whose function is electrical insulation only, see INSULATOR, (as modified). Excludes HOLDER, (as modified); RETAINER, (as modified), and SPACER, PLATE.
Alternate Parts: 10247DAP, 3851111, 385111-1, 5L.5591.002.83, 771730DAP, 7717-30DAP, 86009711, 860097-11, 60903361, 6090336-1, 810AS4634, 810AS463-4, 12677141, 1267714-1, 86009711, 860097-11, 2626576, 262657-6, 10247DAP, 10247-DAP, 140903304, 14090330-4, 140903304, 14090330-4, 16600171004, 16600171-004, 5L.5591.002.83, 771730DAP, 7717-30DAP, 110410471, 11041047-1, 11041047, 5999-00-922-4894, 00-922-4894, 5999009224894, 009224894
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 17, 1968 | 00-922-4894 | 61934 ( MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT ) |
REFERENCE DRAWINGS & PICTURES
DISK

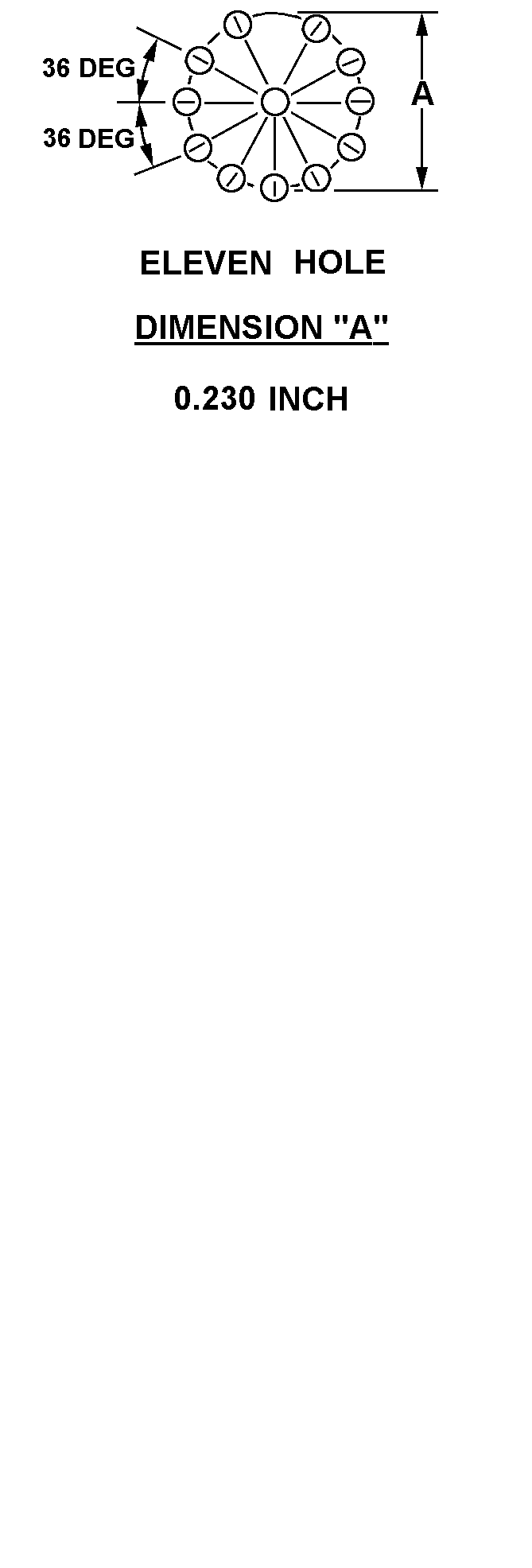

ELEVEN HOLE - 0.230 INCH
Cross Reference | NSN 5999-00-922-4894
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10247DAP | 10247 | CADILLAC STAMP CO |
| 385111-1 | 00752 | EDO LLCDIV ANTENNA PRODUCTS |
| 5L.5591.002.83 | D1901 | HENSOLDT SENSORS GMBHDIV SEPS |
| 7717-30DAP | C7407 | IV-ELECTRONIC KLAUS VESPERMANN KG |
| 860097-11 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATIONSYSTEMS DIVISION |
| 6090336-1 | 03640 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 810AS463-4 | 30003 | NAVAL AIR SYSTEMS COMMAND MANAGEDORIGINAL DESIGN ACTIVITY NOT |
| 1267714-1 | 70143 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDBA NORTHROP GRUMMAN ELECTRONIC |
| 860097-11 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NAVIGATION AND MARITIME SYSTEMS |
| 262657-6 | 01534 | RAYTHEON COMPANYDBA RAYTHEON |
| 10247-DAP | 07047 | ROSS MILTON CO THE |
| 14090330-4 | F6151 | SAFRAN |
| 14090330-4 | FAQ15 | SAFRAN ELECTRONICS & DEFENSE |
| 16600171-004 | 28009 | SYPRIS ELECTRONICS, LLCDIV SYPRIS ELECTRONICS, LLC - |
| 5L.5591.002.83 | D6513 | TELEFUNKEN RADIOCOMMUNICATIONSYSTEMS GMBH & CO. KG |
| 7717-30DAP | 13103 | THERMALLOY CO INC |
| 11041047-1 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| 11041047 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5999-00-922-4894
| Characteristic | Specifications |
|---|---|
| BODY STYLE | DISK |
| OVERALL HEIGHT | 0.075 INCHES NOMINAL |
| OVERALL DIAMETER | 0.375 INCHES NOMINAL |
| COLOR | BLACK |
| MATERIAL | PLASTIC DIALLYL PHTHALATE MINERAL FILLED |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14F,TYPE SDG MIL SPEC SINGLE MATERIAL RESPONSE |
| ACCOMMODATED DEVICE MOUNTING HOLE PATTERN STYLE | ELEVEN HOLE - 0.230 INCH |
| ACCOMMODATED DEVICE MOUNTING HOLE QUANTITY | 11 |
| SPECIFICATION/STANDARD DATA | 18876-11041047 MANUFACTURERS SPECIFICATION CONTROL |
