NSN 5999-00-915-1085
Part Details | DELAY LINE
5999-00-915-1085 An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY.
Alternate Parts: 806, 338841, 5999-00-915-1085, 00-915-1085, 5999009151085, 009151085
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 01, 1966 | 00-915-1085 | 06373 ( DELAY LINE ) |
REFERENCE DRAWINGS & PICTURES
RECTANGULAR

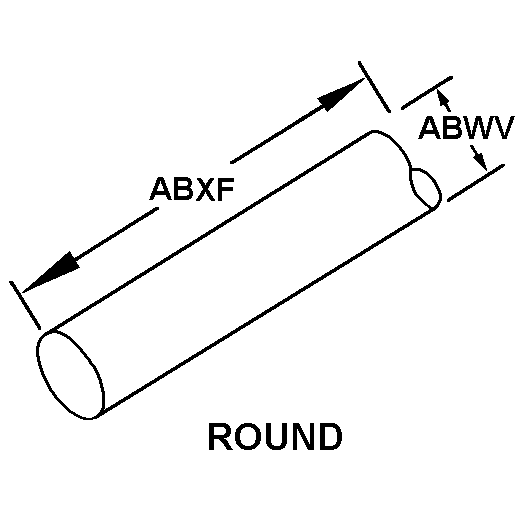

ROUND
Cross Reference | NSN 5999-00-915-1085
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 806 | 00222 | ESC CONTROL ELECTRONICS LLCDBA CONTROL ELECTRONICS DIVISION OF |
| 338841 | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
Technical Data | NSN 5999-00-915-1085
| Characteristic | Specifications |
|---|---|
| SIGNAL DELAY METHOD | INDUCTANCE |
| DELAY TIME VARIATION METHOD | VARIABLE |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SECTION DELAY TIME | CN250.000 NANOSECONDS NOMINAL |
| OPERATING TEMP RANGE | -55.0 TO +125.0 DEG CELSIUS |
| INPUT IMPEDANCE RATING | 500.000 OHMS |
| OUTPUT IMPEDANCE RATING | 500.000 OHMS |
| ADJUSTMENT DEVICE DRIVE TYPE | SHAFT |
| SHAFT STYLE | ROUND |
| BODY STYLE | 0 RECTANGULAR |
| OVERALL DEPTH | 4.125 INCHES NOMINAL |
| BODY LENGTH | 0.700 INCHES NOMINAL |
| BODY WIDTH | 0.344 INCHES NOMINAL |
| BODY DEPTH | 4.000 INCHES NOMINAL |
| DISTANCE FROM END OF BODY TO CENTER OF SHAFT | 0.450 INCHES NOMINAL |
| MATERIAL AND LOCATION | PLASTIC BODY |
| TERMINAL TYPE AND QUANTITY | 4 PIN |
| MOUNTING FACILITY | TERMINAL |
| MOUNTING FACILITY QUANTITY | 4 |
| INCLOSURE TYPE | HERMETICALLY SEALED |
