NSN 5999-00-913-0883
Part Details | ELECTRICAL CLAMP
5999-00-913-0883 A clamp specifically designed to carry electric current. See also CLIP, ELECTRICAL; SPLICE, CONDUCTOR; TERMINAL, LUG; and RETAINER (as modified). Excludes BRACKET, PIPE.
Alternate Parts: MFAG0975, DN14G1, 8406H, G6, 869305, 869-305, 5999-00-913-0883, 00-913-0883, 5999009130883, 009130883
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1960 | 00-913-0883 | 00865 ( CLAMP, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

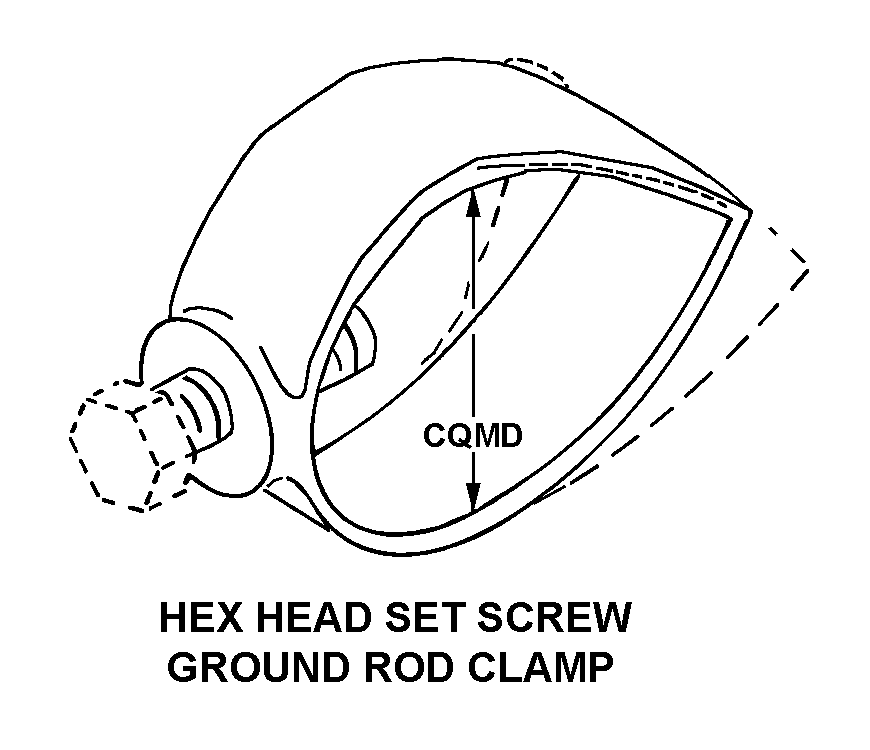

HEX HEAD SETSCREW GROUND ROD CLAMP
Cross Reference | NSN 5999-00-913-0883
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MFAG0975 | 51745 | AMERICAN DEVELOPMENT CORP |
| DN14G1 | 84973 | COOPER INDUSTRIES INCMCGRAW-EDISON POWER SYSTEMS DIV |
| 8406H | 73569 | LA CHANCE LTD |
| G6 | 56501 | THOMAS & BETTS CORPORATION |
| 869-305 | 48348 | VALLEN DISTRIBUTION, INC.DBA CAM BAR |
Technical Data | NSN 5999-00-913-0883
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HEX HEAD SETSCREW GROUND ROD CLAMP |
| ACCOMMODATION HOLE WIDTH | 0.750 INCHES NOMINAL |
| MOUNTING METHOD | TENSION |
| CONDUCTOR ACCOMMODATION QUANTITY | 1 |
