NSN 5999-00-911-4279
Part Details | ELECTRICAL-ELECTRONIC COMPONENT HEAT SINK
5999-00-911-4279 An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies.
Alternate Parts: 112670791, 11267079-1, 1103B, 1103B, 13220426, 5999-00-911-4279, 00-911-4279, 5999009114279, 009114279
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1960 | 00-911-4279 | 61433 ( HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT ) |
REFERENCE DRAWINGS & PICTURES

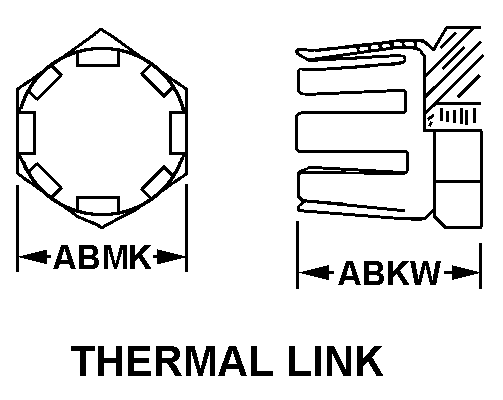

THERMAL LINK
Cross Reference | NSN 5999-00-911-4279
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11267079-1 | 17773 | BALLISTIC MISSILE DEFENSE SYSTEMSCOMMAND |
| 1103B | C7407 | IV-ELECTRONIC KLAUS VESPERMANN KG |
| 1103B | 13103 | THERMALLOY CO INC |
| 13220426 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5999-00-911-4279
| Characteristic | Specifications |
|---|---|
| BODY STYLE | THERMAL LINK |
| OVERALL HEIGHT | 0.500 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 2024 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225.T4 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE |
