NSN 5999-00-908-9668
Part Details | ELECTRICAL-ELECTRONIC COMPONENT HEAT SINK
5999-00-908-9668 An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies.
Alternate Parts: LP5A1B, LP5A1B, LP5A1B, 5999-00-908-9668, 00-908-9668, 5999009089668, 009089668
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1960 | 00-908-9668 | 61433 ( HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT ) |
REFERENCE DRAWINGS & PICTURES

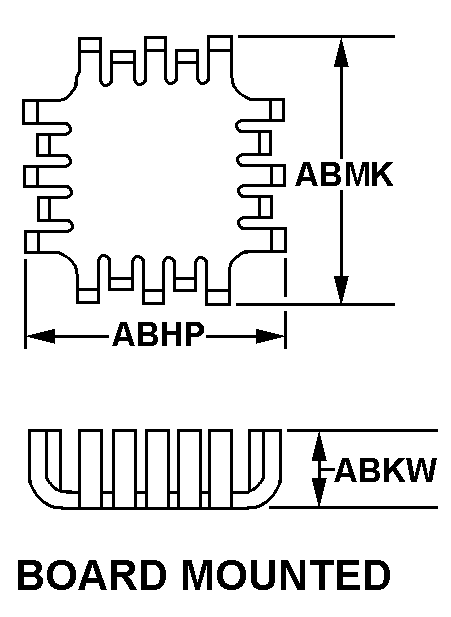

BOARD MOUNTED
Cross Reference | NSN 5999-00-908-9668
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LP5A1B | 98978 | CTS ELECTRONIC COMPONENTS CALIFORNIAINC |
| LP5A1B | F6151 | SAFRAN |
| LP5A1B | FAQ15 | SAFRAN ELECTRONICS & DEFENSE |
Technical Data | NSN 5999-00-908-9668
| Characteristic | Specifications |
|---|---|
| BODY STYLE | BOARD MOUNTED |
| OVERALL LENGTH | 1.060 INCHES NOMINAL |
| OVERALL HEIGHT | 1.060 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 6061 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250 TO 11 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE |
