NSN 5999-00-892-8356
Part Details | ELECTRICAL SHIELD RETAINER
5999-00-892-8356 An item specifically designed to position and restrain the movement of an electrical shield in relation to another item. Retainer must not be an integral part of the shield.
Alternate Parts: 555195400, 555195-400, T930007H, T9-3000-7H, SMC5004052, SM-C-500405-2, 5999-00-892-8356, 00-892-8356, 5999008928356, 008928356
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1960 | 00-892-8356 | 16130 ( RETAINER, ELECTRICAL SHIELD ) |
REFERENCE DRAWINGS & PICTURES

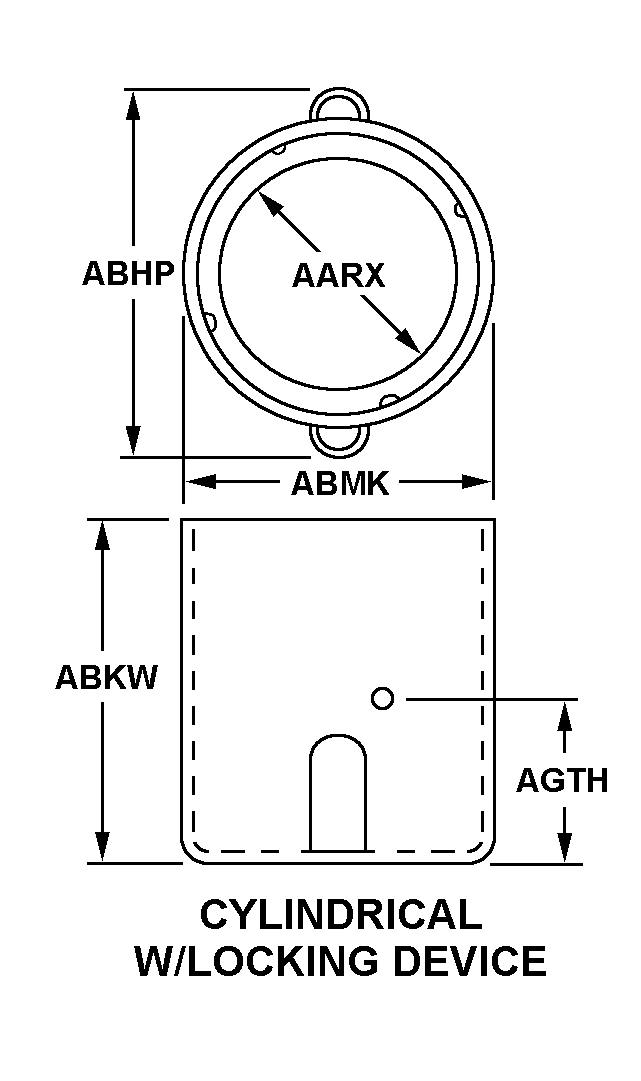

CYLINDRICAL W/LOCKING DEVICE
Cross Reference | NSN 5999-00-892-8356
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 555195-400 | 12436 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| T9-3000-7H | 98978 | CTS ELECTRONIC COMPONENTS CALIFORNIAINC |
| SM-C-500405-2 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5999-00-892-8356
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 2 MIL SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | CYLINDRICAL W/LOCKING DEVICE |
| INSIDE DIAMETER | 1.130 INCHES NOMINAL |
| OVERALL LENGTH | 1.812 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.500 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SURFACE TO LOCKING DEVICE | 0.750 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | FRICTION FASTENER |
