NSN 5999-00-890-3242
Part Details | DELAY LINE
5999-00-890-3242 An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY.
Alternate Parts: 3683741, 368374-1, DL1021, 5999-00-890-3242, 00-890-3242, 5999008903242, 008903242
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 05, 1968 | 00-890-3242 | 06373 ( DELAY LINE ) |
REFERENCE DRAWINGS & PICTURES
RECTANGULAR

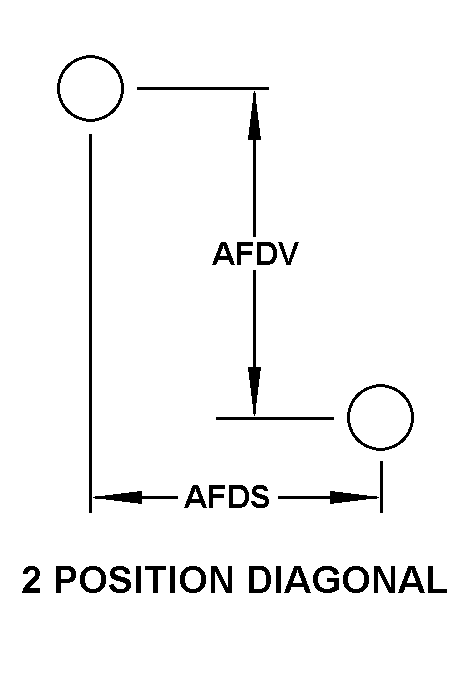

2 POSITION DIAGONAL
Cross Reference | NSN 5999-00-890-3242
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 368374-1 | 37695 | RAYTHEON COMPANYDBA RAYTHEON |
| DL1021 | 15003 | VALOR ELECTRONICS INC |
Technical Data | NSN 5999-00-890-3242
| Characteristic | Specifications |
|---|---|
| SIGNAL DELAY METHOD | LUMPED CONSTANT |
| DELAY TIME VARIATION METHOD | TAPPED |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SECTION DELAY TIME | CN135.000 NANOSECONDS NOMINAL |
| SEGMENT QUANTITY PER SECTION | 6 SINGLE SECTION |
| PULSE RISE TIME RATING | 45.0 NANOSECONDS |
| BODY STYLE | RECTANGULAR |
| BODY LENGTH | 3.120 INCHES NOMINAL |
| BODY WIDTH | 0.500 INCHES NOMINAL |
| BODY DEPTH | 0.450 INCHES NOMINAL |
| MATERIAL AND LOCATION | PLASTIC OVERALL |
| TERMINAL TYPE AND QUANTITY | 8 WIRE HOOK |
| MOUNTING FACILITY | SLOT |
| MOUNTING FACILITY QUANTITY | 2 |
| SLOT LENGTH | 0.250 INCHES NOMINAL |
| SLOTTED HOLE WIDTH | 0.125 INCHES NOMINAL |
| MOUNTING PROVISION ARRANGEMENT STYLE | 2 POSITION DIAGONAL |
| FSC APPLICATION DATA | RADAR SET,FIRE CONTROL,GUNNERY. AIRCRAFT |
