NSN 5999-00-884-2458
Part Details | ELECTRICAL-ELECTRONIC COMPONENT HEAT SINK
5999-00-884-2458 An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies.
Alternate Parts: 802107, SMC413951, SM-C-413951, SCM413951, 5999-00-884-2458, 00-884-2458, 5999008842458, 008842458
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1962 | 00-884-2458 | 61433 ( HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT ) |
REFERENCE DRAWINGS & PICTURES

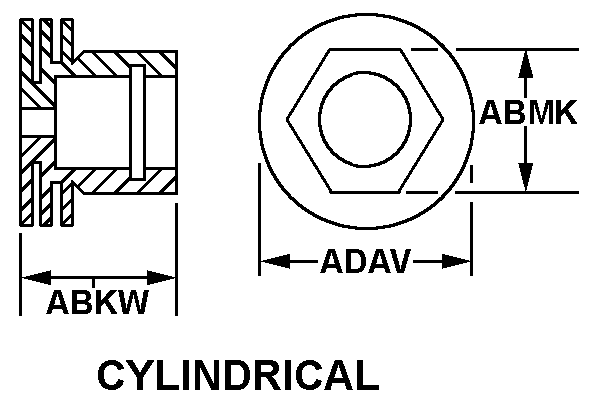

CYLINDRICAL

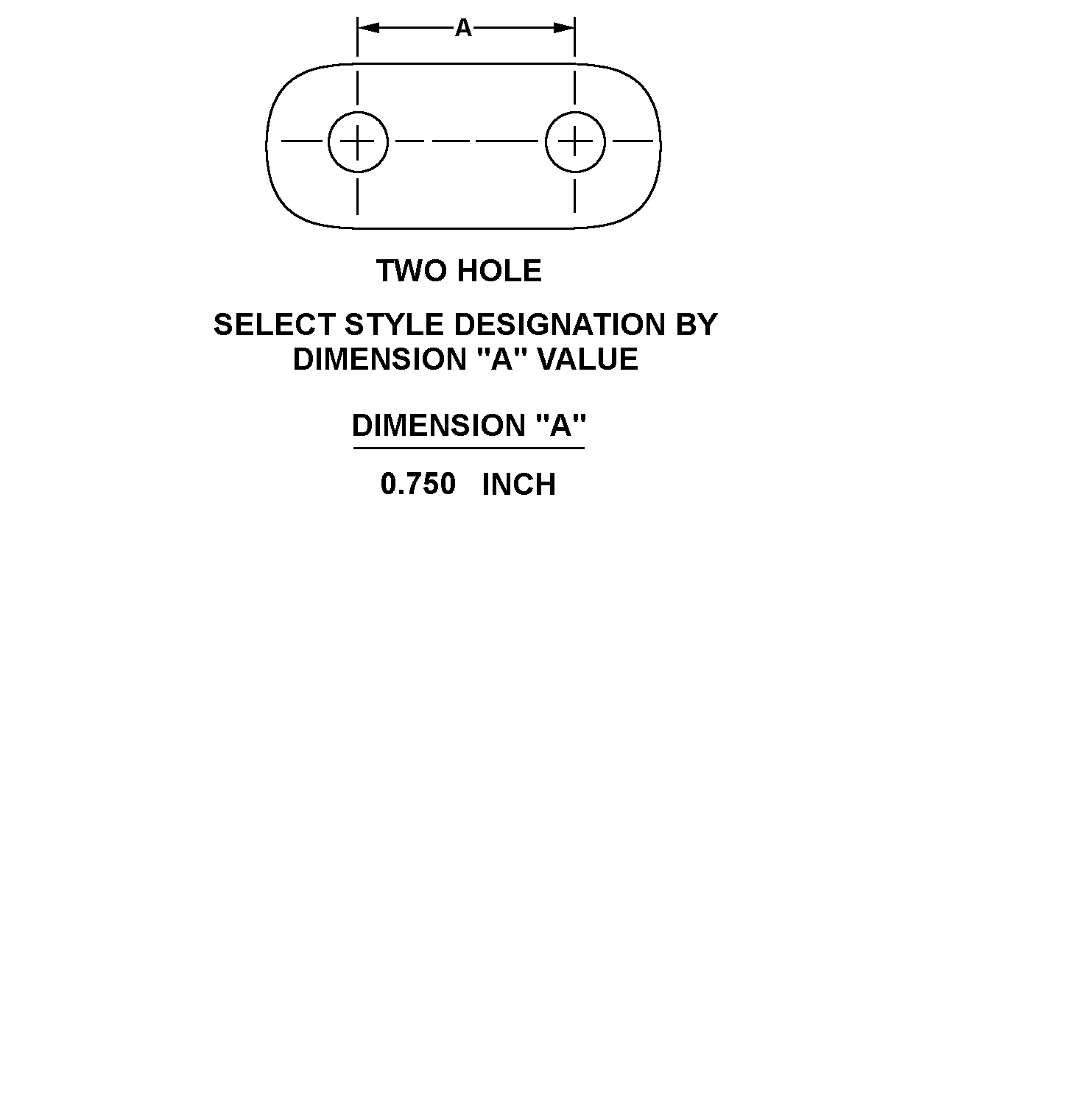

TWO HOLE - 0.750 INCH
Cross Reference | NSN 5999-00-884-2458
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 802107 | 80045 | L-3 COMMUNICATIONS CINCINNATIELECTRONICS CORPORATION |
| SM-C-413951 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
| SCM413951 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5999-00-884-2458
| Characteristic | Specifications |
|---|---|
| BODY STYLE | CYLINDRICAL |
| OVERALL HEIGHT | 0.750 INCHES NOMINAL |
| OVERALL WIDTH | 0.906 INCHES MINIMUM AND 0.911 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.625 INCHES NOMINAL |
| MATERIAL | COPPER |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-576 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | SILVER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-S-365,TYPE III,GRADE A FED SPEC SINGLE TREATMENT RESPONSE |
| ACCOMMODATED DEVICE MOUNTING HOLE PATTERN STYLE | TWO HOLE - 0.750 INCH |
| ACCOMMODATED DEVICE MOUNTING HOLE QUANTITY | 2 |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND LOCATION | PLATING SILVER |
