NSN 5999-00-876-5167
Part Details | ELECTRONIC SHIELDING GASKET
5999-00-876-5167 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Alternate Parts: 440513, 58003321100032, 5800332-1100-032, 5999-00-876-5167, 00-876-5167, 5999008765167, 008765167
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1962 | 00-876-5167 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |
REFERENCE DRAWINGS & PICTURES
METAL AND NONMETALLIC MATERIALS

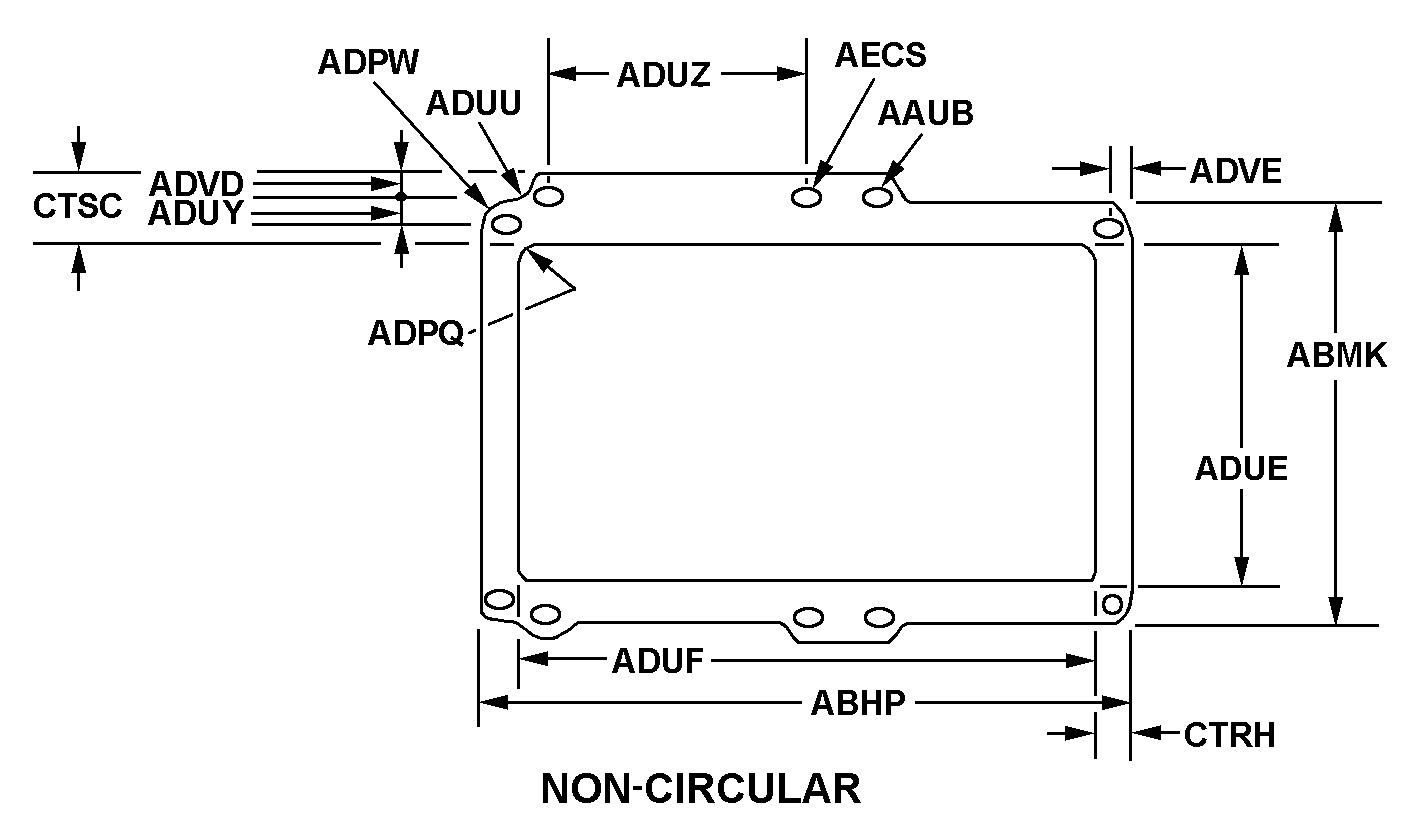

NON-CIRCULAR
Cross Reference | NSN 5999-00-876-5167
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 440513 | 80249 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| 5800332-1100-032 | C0426 | HENSOLDT SENSORS GMBH |
Technical Data | NSN 5999-00-876-5167
| Characteristic | Specifications |
|---|---|
| ENVIRONMENTAL PROTECTION MATERIAL LOCATION | THROUGHOUT RF SHIELDING GASKET |
| CROSS-SECTIONAL SHAPE STYLE | 9 METAL AND NONMETALLIC MATERIALS |
| CROSS-SECTIONAL HEIGHT | 0.062 INCHES NOMINAL |
| STYLE DESIGNATOR | NON-CIRCULAR |
| HOLE DIAMETER | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 8.980 INCHES NOMINAL |
| OVERALL WIDTH | 3.020 INCHES NOMINAL |
| APERTURE WIDTH | 1.880 INCHES NOMINAL |
| APERTURE LENGTH | 3.810 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 5 |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| END ITEM IDENTIFICATION | C-135,C-5,F-111,F-5,T-37,T-38,B-1B |
