NSN 5999-00-841-8798
Part Details | ELECTRICAL CLAMP
5999-00-841-8798 A clamp specifically designed to carry electric current. See also CLIP, ELECTRICAL; SPLICE, CONDUCTOR; TERMINAL, LUG; and RETAINER (as modified). Excludes BRACKET, PIPE.
Alternate Parts: GAR1529, GAR1529, 5999-00-841-8798, 00-841-8798, 5999008418798, 008418798
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1962 | 00-841-8798 | 00865 ( CLAMP, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

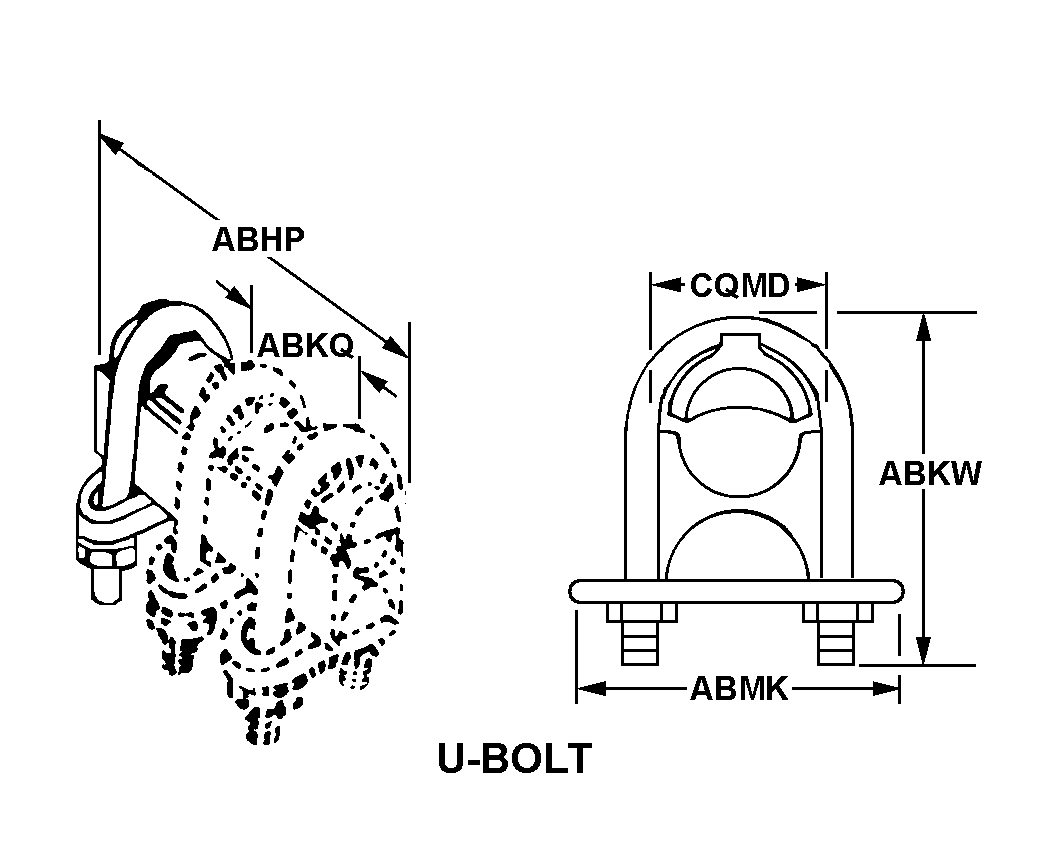

U-BOLT
Cross Reference | NSN 5999-00-841-8798
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GAR1529 | 1NJK8 | BURNDY LLC |
| GAR1529 | 09922 | SOURIAU USA, INC. |
Technical Data | NSN 5999-00-841-8798
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | U-BOLT |
| OVERALL LENGTH | 1.810 INCHES NOMINAL |
| OVERALL HEIGHT | 3.312 INCHES NOMINAL |
| OVERALL WIDTH | 2.620 INCHES NOMINAL |
| MOUNTING METHOD | U-BOLT |
| MOUNTING DEVICE QUANTITY | 1 |
| CONDUCTOR ACCOMMODATION QUANTITY | 1 |
