NSN 5999-00-840-3377
Part Details | DELAY LINE
5999-00-840-3377 An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY.
Alternate Parts: 4400B1249, 4400B1249, 4400B1249, 5999-00-840-3377, 00-840-3377, 5999008403377, 008403377
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1962 | 00-840-3377 | 06373 ( DELAY LINE ) |
REFERENCE DRAWINGS & PICTURES
RECTANGULAR, BRACKETED

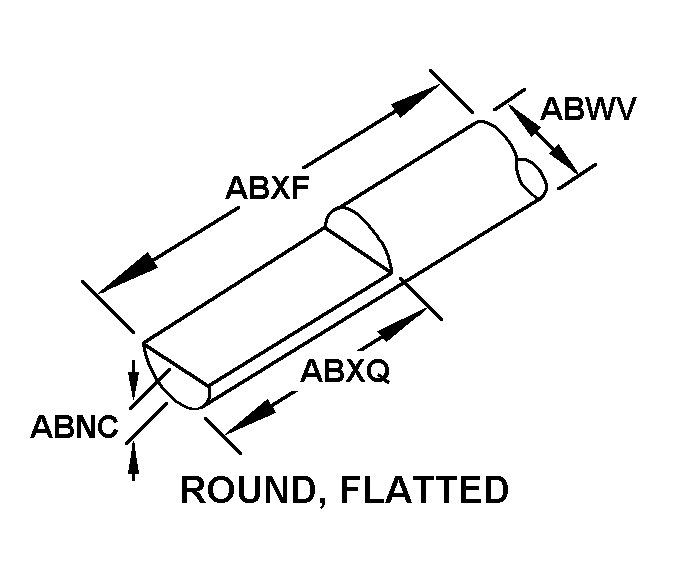

ROUND, FLATTED
FOUR POSITION RECTANGULAR
Cross Reference | NSN 5999-00-840-3377
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4400B1249 | 94117 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| 4400B1249 | 87557 | LOCKHEED CORPLOCKHEED ELECTRONICS CO INC |
| 4400B1249 | 21877 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NAVAL AND MARINE SYSTEMS |
Technical Data | NSN 5999-00-840-3377
| Characteristic | Specifications |
|---|---|
| SIGNAL DELAY METHOD | LUMPED CONSTANT |
| DELAY TIME VARIATION METHOD | ADJUSTABLE |
| STEP QUANTITY | 10 |
| DELAY TIME PER STEP | 70.000 NANOSECONDS NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SECTION DELAY TIME | CN7.000 MICROSECONDS NOMINAL |
| OPERATING TEMP RANGE | +0.0 TO +75.0 DEG CELSIUS |
| INPUT IMPEDANCE RATING | 500.000 OHMS |
| OUTPUT IMPEDANCE RATING | 500.000 OHMS |
| ATTENUATION IN DECIBELS | 4.000 |
| PULSE RISE TIME RATING | 400.0 NANOSECONDS |
| FREQUENCY BANDWIDTH | 900.0 KILOHERTZ NOMINAL |
| ADJUSTMENT DEVICE DRIVE TYPE | SHAFT |
| ADJUSTMENT DEVICE QUANTITY | 2 |
| SHAFT STYLE | ROUND, FLATTED |
| FLAT HEIGHT | 0.188 INCHES NOMINAL |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 0.312 INCHES NOMINAL |
| FLATTED PORTION LENGTH | 0.312 INCHES NOMINAL |
| BODY STYLE | RECTANGULAR, BRACKETED |
| OVERALL LENGTH | 4.250 INCHES NOMINAL |
| BODY LENGTH | 3.250 INCHES NOMINAL |
| BODY WIDTH | 3.500 INCHES NOMINAL |
| BODY DEPTH | 2.250 INCHES NOMINAL |
| MATERIAL AND LOCATION | STEEL CASE |
| SURFACE TREATMENT AND LOCATION | ENAMEL, DULL GRAY, METALLIC CASE |
| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR, RECEPTACLE AND 2 TAB SOLDER LUG |
| MOUNTING FACILITY | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 4 |
| HOLE DIAMETER | 0.188 INCHES NOMINAL |
| MOUNTING PROVISION ARRANGEMENT STYLE | FOUR POSITION RECTANGULAR |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 3.750 INCHES NOMINAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 1.750 INCHES NOMINAL |
| SPECIAL FEATURES | FINE CONTROL 11 EQUAL INCREMENTS 0/0.7 MICROSECOND EACH |
| FSC APPLICATION DATA | RADAR NONAIRBORNE EXCEPT FIRE CONTROL AND GUIDED MISSILE |
