NSN 5998-00-017-0850
Part Details | ELECTRICAL CARD RETAINER-EJECTOR
5998-00-017-0850 A device having the dual function of providing restraint for, and facilitating the removal of CIRCUIT CARD ASSEMBLY; or PRINTED CIRCUIT BOARD. Excludes HOLDER, ELECTRICAL CARD.
Alternate Parts: 18892232, 1889223-2, 18892232, 1889223-2, 5998-00-017-0850, 00-017-0850, 5998000170850, 000170850
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 20, 1967 | 00-017-0850 | 31931 ( RETAINER-EJECTOR, ELECTRICAL CARD ) |

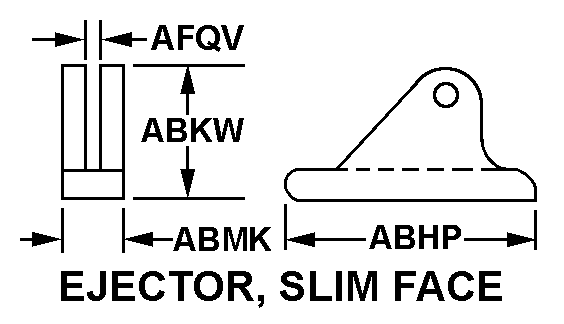

REFERENCE DRAWINGS & PICTURES
EJECTOR, SLIM FACE
Cross Reference | NSN 5998-00-017-0850
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1889223-2 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICSSYSTEMS FORMER BENDIX NAVIGATION AND |
| 1889223-2 | 55972 | HONEYWELL INTL INCDEFENSE AVIONICS SYSTEMS |
Technical Data | NSN 5998-00-017-0850
| Characteristic | Specifications |
|---|---|
| BODY STYLE | EJECTOR, SLIM FACE |
| OVERALL LENGTH | 1.062 INCHES NOMINAL |
| OVERALL HEIGHT | 0.249 INCHES NOMINAL |
| OVERALL WIDTH | 0.187 INCHES NOMINAL |
| COLOR | WHITE |
| END ITEM IDENTIFICATION | C-141 AWLS |
