NSN 5985-01-009-9062
Part Details | FIXED ATTENUATOR
5985-01-009-9062 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Alternate Parts: 161512210, 161512-210, 161512101, 161512-101, 09250A10DB, 09-250-A10DB, 09125A10DB, 09-125-A10DB, 5985-01-009-9062, 01-009-9062, 5985010099062, 010099062
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | SEP 21, 1975 | 01-009-9062 | 14224 ( ATTENUATOR, FIXED ) |
REFERENCE DRAWINGS & PICTURES

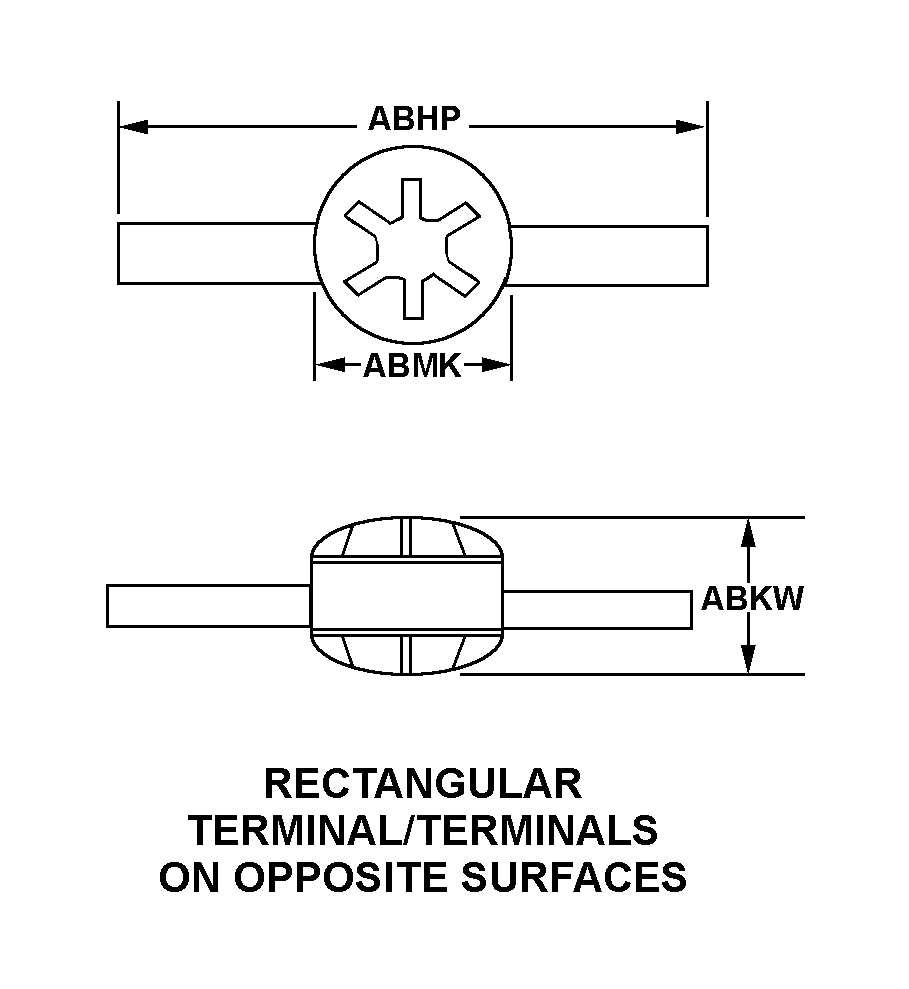

RECTANGULAR TERMINAL/TERMINALS ON OPPOSITE SURFACES
Cross Reference | NSN 5985-01-009-9062
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 161512-210 | 81413 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION I |
| 161512-101 | 81413 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION I |
| 09-250-A10DB | 24602 | SMITHS INTERCONNECT MICROWAVECOMPONENTS, INC. |
| 09-125-A10DB | 24602 | SMITHS INTERCONNECT MICROWAVECOMPONENTS, INC. |
Technical Data | NSN 5985-01-009-9062
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| INPUT IMPEDANCE RATING IN OHMS | 50.0 |
| OUTPUT IMPEDANCE RATING IN OHMS | 50.0 |
| FREQUENCY RANGE | 0.000 HERTZ MINIMUM AND 12.000 GIGAHERTZ MAXIMUM |
| VOLTAGE STANDING WAVE RATIO | B1.25$$B1.50 |
| VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE | +0.0 TO +8.0 GIGAHERTZ AND +8.0 TO +12.0 GIGAHERTZ |
| RF SIGNAL ATTENUATION IN DECIBELS | 10.0 |
| ATTENUATION ACCURACY IN DECIBELS | M0.50/P0.50 |
| ATTENUATION ACCURACY REFERENCE FREQUENCY | 8.0 GIGAHERTZ |
| POWER RATING | 1.0 WATTS AVERAGE |
| OPERATING TEMP RANGE | -55.0 TO +125.0 DEG CELSIUS |
| BODY STYLE | RECTANGULAR TERMINAL/TERMINALS ON OPPOSITE SURFACES |
| OVERALL LENGTH | 0.750 INCHES MINIMUM |
| OVERALL HEIGHT | 0.281 INCHES NOMINAL |
| OVERALL WIDTH | 0.248 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| BODY MATERIAL | BRASS |
| BODY SURFACE TREATMENT | UG000 ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG AND 1 THREADED STUD |
| MOUNTING METHOD | THREADED STUD |
| MOUNTING HOLE/STUD QUANTITY | 1 |
| MOUNTING FACILITY THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.112-40 UNC |
| TERMINAL MATERIAL | BRASS |
| TERMINAL SURFACE TREATMENT | UG000 ANY ACCEPTABLE |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND LOCATION | BODY GOLD |
| FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
