NSN 5985-01-006-9919
Part Details | WAVEGUIDE SEAL
5985-01-006-9919 An item or assembly designed to be fitted into or external to the end of a waveguide, in order to prevent the entrance of moisture or other foreign matter, without appreciably attenuating radio frequencies. May or may not be pressure proof.
Alternate Parts: 55675112, 55675-112, SMA778218, SM-A-778218, 5985-01-006-9919, 01-006-9919, 5985010069919, 010069919
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 26, 1975 | 01-006-9919 | 02477 ( SEAL, WAVEGUIDE ) |

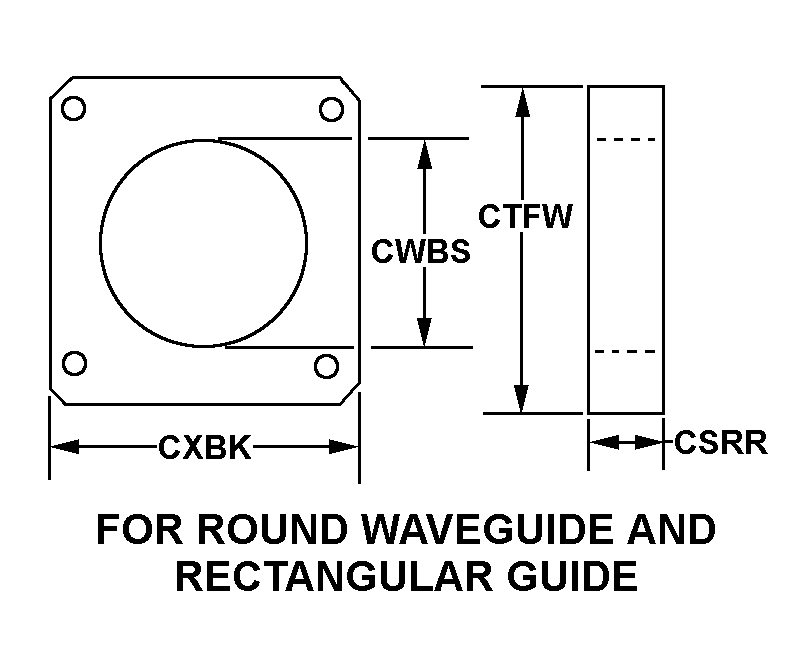

REFERENCE DRAWINGS & PICTURES
FOR ROUND WAVEGUIDE AND RECTANGULAR FLANGE
Cross Reference | NSN 5985-01-006-9919
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 55675-112 | 84147 | ANDREW LLC |
| SM-A-778218 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5985-01-006-9919
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FOR ROUND WAVEGUIDE AND RECTANGULAR FLANGE |
| SEAL THICKNESS | 0.750 INCHES NOMINAL |
| SEAL INSIDE DIAMETER | 1.122 INCHES NOMINAL |
| SEAL OUTSIDE WIDTH | 1.875 INCHES NOMINAL |
