NSN 5985-00-955-2170
Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-955-2170 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 5487537005, 548-7537-005, 5985-00-955-2170, 00-955-2170, 5985009552170, 009552170
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1960 | 00-955-2170 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

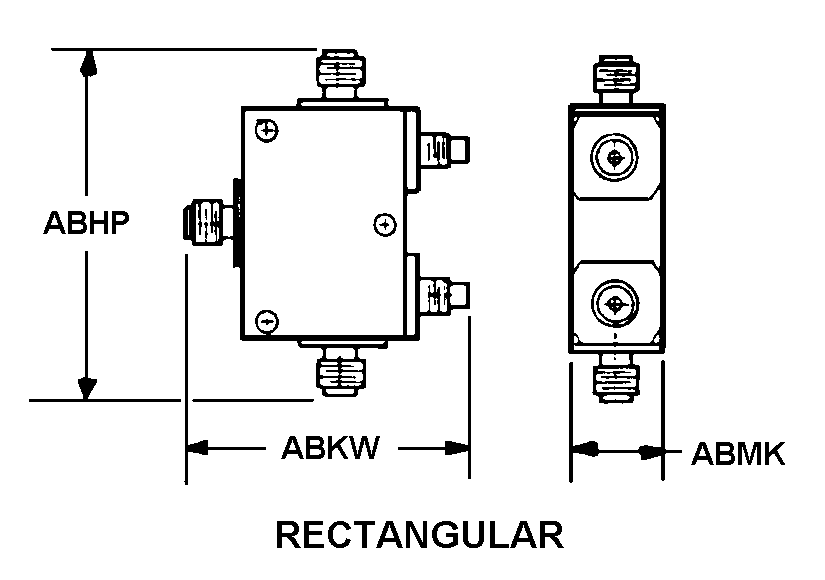

REFERENCE DRAWINGS & PICTURES
RECTANGULAR
Cross Reference | NSN 5985-00-955-2170
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 548-7537-005 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
Technical Data | NSN 5985-00-955-2170
| Characteristic | Specifications |
|---|---|
| ACTUATOR VOLTAGE IN VOLTS | 26.5 NOMINAL |
| COUPLING POSITION QUANTITY | 7 |
| TERMINAL TYPE AND QUANTITY | 4 PIN AND 7 RECEPTACLE, COAXIAL |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 3.000 INCHES NOMINAL |
| OVERALL HEIGHT | 2.250 INCHES NOMINAL |
| OVERALL WIDTH | 2.000 INCHES NOMINAL |
