NSN 5985-00-941-3542
Part Details | FIXED ATTENUATOR
5985-00-941-3542 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Alternate Parts: SMC498256, SM-C-498256, 50RD242, 50RD-242, 9600, DAA78, SMC498256, SM-C-498256, 5985-00-941-3542, 00-941-3542, 5985009413542, 009413542
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 12, 1965 | 00-941-3542 | 14224 ( ATTENUATOR, FIXED ) |
REFERENCE DRAWINGS & PICTURES
ROUND, TERMINAL/TERMINALS IN OPPOSITE SURFACE

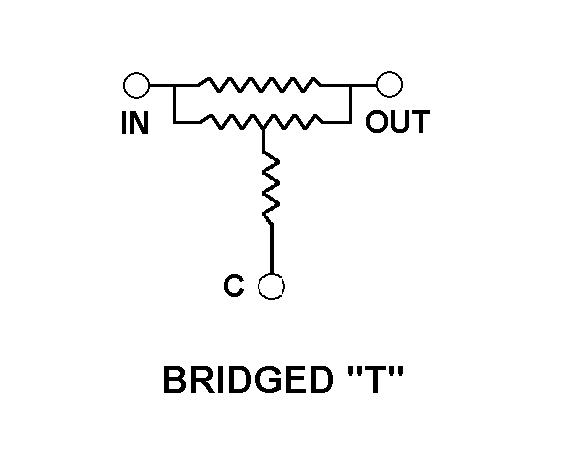

BRIDGED "T"
Cross Reference | NSN 5985-00-941-3542
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SM-C-498256 | 52750 | ALAN INDUSTRIES INC |
| 50RD-242 | 52750 | ALAN INDUSTRIES INC |
| 9600 | 16301 | HUBER+SUHNER ASTROLAB, INC.DIV HUBER+SUHNER ASTROLAB |
| DAA78 | 00929 | MICROLAB/FXR |
| SM-C-498256 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5985-00-941-3542
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | AUDIO |
| SCHEMATIC DIAGRAM DESIGNATOR | BRIDGED "T" |
| INPUT IMPEDANCE RATING IN OHMS | 50.0 |
| OUTPUT IMPEDANCE RATING IN OHMS | 50.0 |
| FREQUENCY RANGE | 600.000 MEGAHERTZ MINIMUM AND 1.850 GIGAHERTZ MAXIMUM |
| VOLTAGE STANDING WAVE RATIO | B1.36$$B1.60 |
| RF SIGNAL ATTENUATION IN DECIBELS | 25.0 |
| ATTENUATION ACCURACY REFERENCE FREQUENCY | 5.0 GIGAHERTZ |
| POWER RATING | 0.5 WATTS AVERAGE |
| BODY STYLE | ROUND, TERMINAL/TERMINALS IN OPPOSITE SURFACE |
| OVERALL LENGTH | 2.500 INCHES NOMINAL |
| OVERALL DIAMETER | 1.000 INCHES NOMINAL |
| BODY MATERIAL | NICKEL |
| TERMINAL TYPE AND QUANTITY | 1 BINDING POST |
