NSN 5985-00-891-8142
Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-891-8142 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: P752000100, 5985-00-891-8142, 00-891-8142, 5985008918142, 008918142
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1960 | 00-891-8142 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

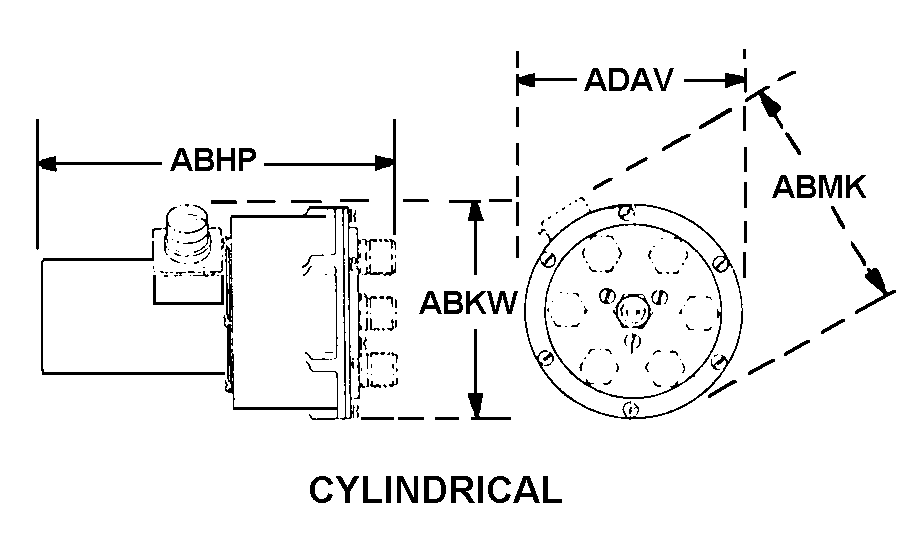

REFERENCE DRAWINGS & PICTURES
CYLINDRICAL
Cross Reference | NSN 5985-00-891-8142
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P752000100 | 16786 | F E L CORP |
Technical Data | NSN 5985-00-891-8142
| Characteristic | Specifications |
|---|---|
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 1.0 AC MAXIMUM |
| ACTUATOR VOLTAGE IN VOLTS | 117.0 MINIMUM |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| COUPLING POSITION QUANTITY | 6 |
| TERMINAL TYPE AND QUANTITY | 1 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | N |
| CONNECTOR END DESIGN | MALE |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |
| SWITCHING TIME | 1.0 SECONDS |
| BODY STYLE | CYLINDRICAL |
| OVERALL HEIGHT | 5.500 INCHES NOMINAL |
| OVERALL WIDTH | 7.489 INCHES NOMINAL |
| SPECIAL FEATURES | ROTOR BLADE COIN SILVER CONTAINING 90 PER CENT SILVER |
| OPERATING TEMP RANGE | -0.0 TO +50.0 DEG CELSIUS |
