NSN 5985-00-868-1053
Part Details | WAVEGUIDE ADAPTER
5985-00-868-1053 An item designed to establish the necessary accommodations to connect a waveguide to a coaxial line, or to connect two or more terminated waveguides whose physical design does not normally allow connection.
Alternate Parts: 10108521, 5985-00-868-1053, 00-868-1053, 5985008681053, 008681053
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1960 | 00-868-1053 | 00186 ( ADAPTER, WAVEGUIDE ) |

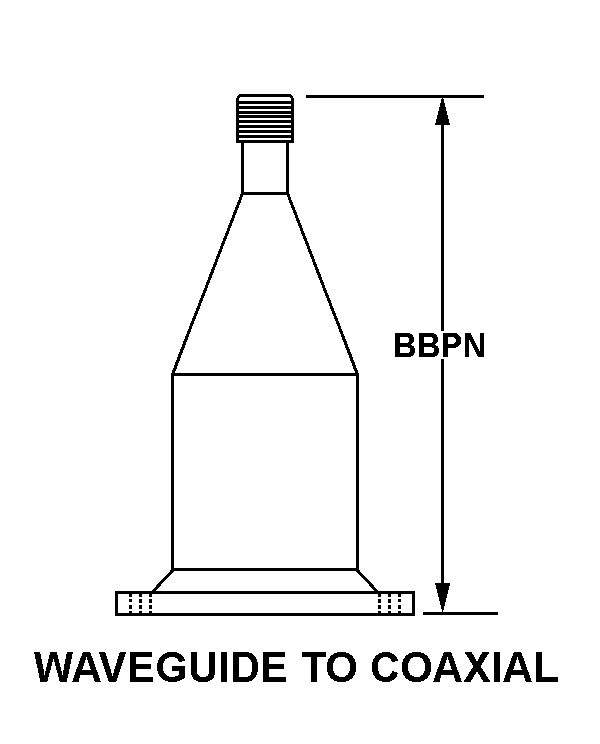

REFERENCE DRAWINGS & PICTURES
INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR
WAVEGUIDE TO COAXIAL
Cross Reference | NSN 5985-00-868-1053
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10108521 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5985-00-868-1053
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | WAVEGUIDE TO COAXIAL |
| ADAPTER LENGTH | 21.359 INCHES MINIMUM AND 21.391 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| FLANGE QUANTITY | 2 |
| FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
